ZWO Off-Axis Guider - Large

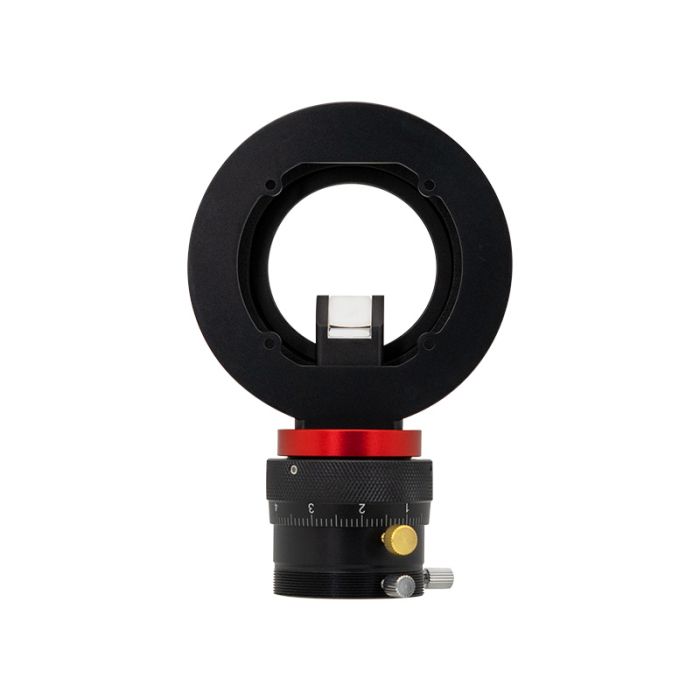

ZWO OAG-L Off-Axis Guider: Enhancing Long Focal Length Astrophotography
The ZWO OAG-L Off-Axis Guider is expertly designed for serious astrophotographers focusing on long focal length imaging. Compatible with APS-C and full-frame cameras, as well as 7 x 36mm and 2" EFW filter wheels, this OAG-L is an essential tool for achieving precision in deep-sky astrophotography.
Enhanced Guiding Accuracy:
Large Prism Size: Features a 12 x 12mm prism, significantly larger than the standard ZWO M68 OAG, to provide a broader field of view for guiding.
Ideal for Long Focal Lengths: Especially effective with telescopes having long focal lengths, recommended for use with a large sensor guiding camera like the ASI174MM Mini.
Technical Specifications:
Optical Thickness: 17.5mm, plus an additional 5mm with the tilt plate, totaling 22.5mm.
Light-Passing Aperture: The guide camera interface has an effective aperture of 11.7 x 8.3mm.
Camera Compatibility: Specifically designed to be compatible only with ASI mini cameras.
Included Accessory: Comes with an M48 sensor tilt plate, adding 5mm of optical thickness.
Compatibility and Usage Notes:
Telescope Compatibility: Best paired with telescopes having a clear aperture of M48 or larger.
Non-Compatibility: Not fully compatible with the ASI071MC Pro due to a different tilt plate setup.
Advantages of Using OAG-L:
Differential Flexure Elimination: Addresses guiding errors due to flexing in separate guiding scopes.
Integrated Guiding: The off-axis guide uses a prism to redirect part of the light to the guiding camera, ensuring the guiding and imaging telescopes are the same.
Weight Reduction: Eliminates the need for a separate guiding telescope, reducing overall setup weight.
Key Features:
Telescope Connection: Compatible with ZWO M48, M54, or M68 sensor tilt plates.
Camera Connection: Uses 4 x M2.5 screws, spaced 62mm apart, suitable for EFW 7 x 36 or 2".
Sensor Size Compatibility: Ideal for APS-C and Full-frame sensor cameras.
Guide Camera Compatibility: Fits 1.25" barrel cameras with a guide camera interface of 1.25".
Weight: Lightweight at 267g, minimizing the load on your telescope mount.
