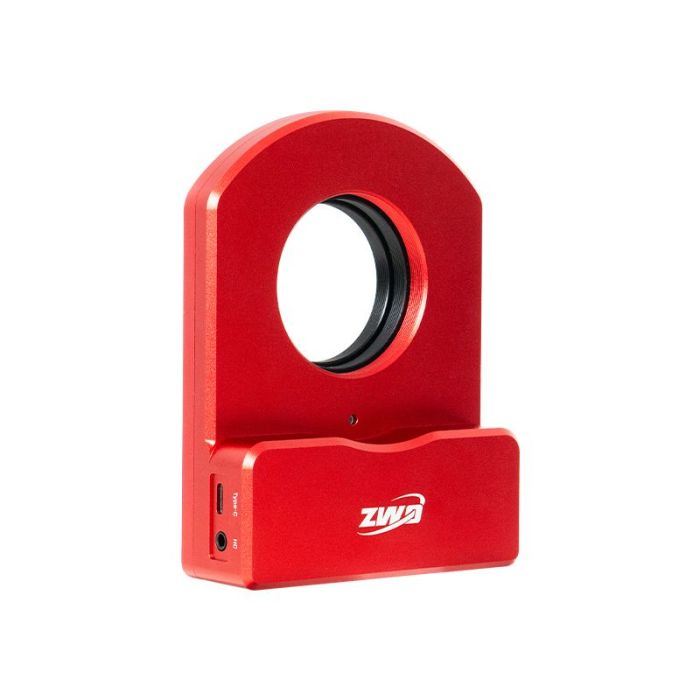

ZWO CAA Camera Angle Adjuster

Effortlessly rotate your camera and frame the perfect shot with the ZWO CAA! The ZWO Camera Angle Adjuster (CAA) is a game-changer for astrophotographers, designed to simplify image composition with its outstanding performance, automated software control, and intuitive operation. With the ZWO CAA, capturing breathtaking astrophotography has never been easier or more fun.

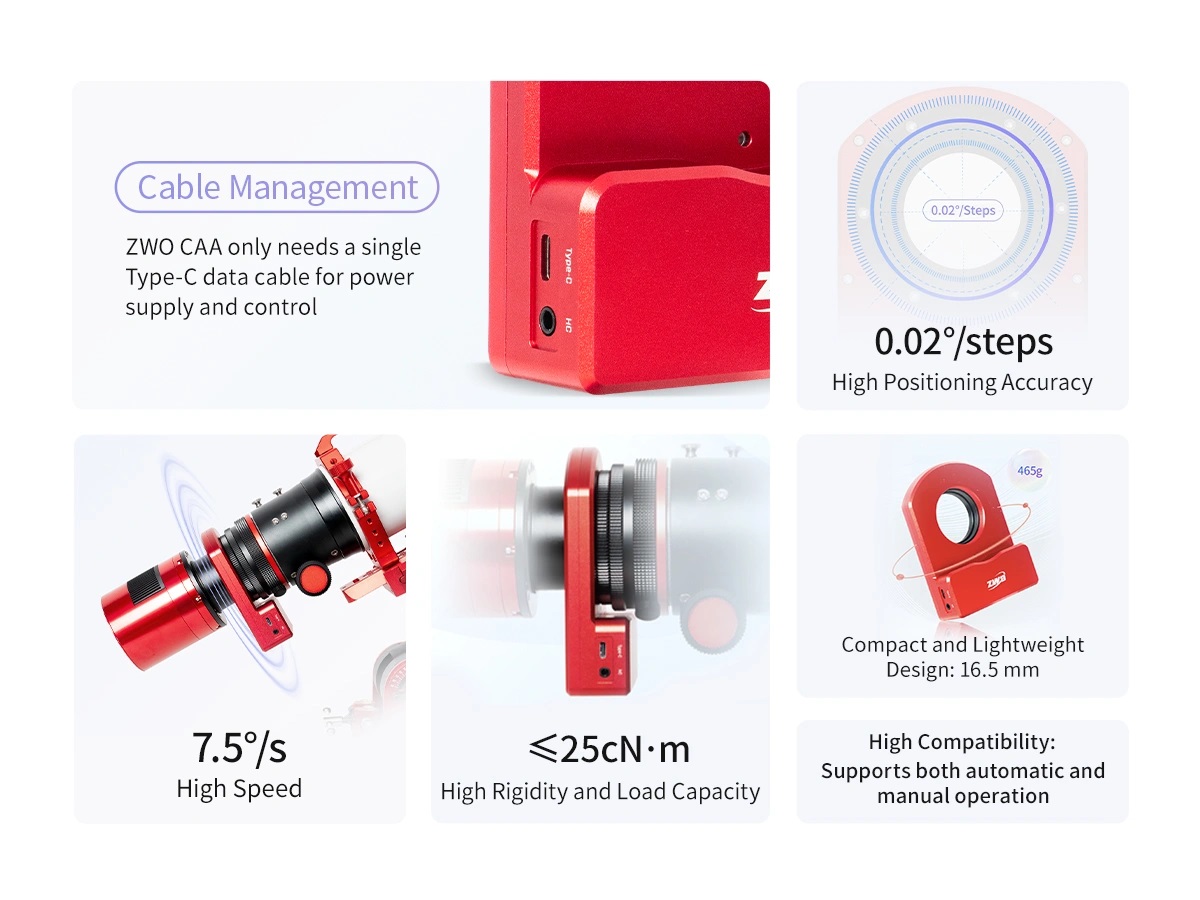

Why Choose the ZWO CAA?

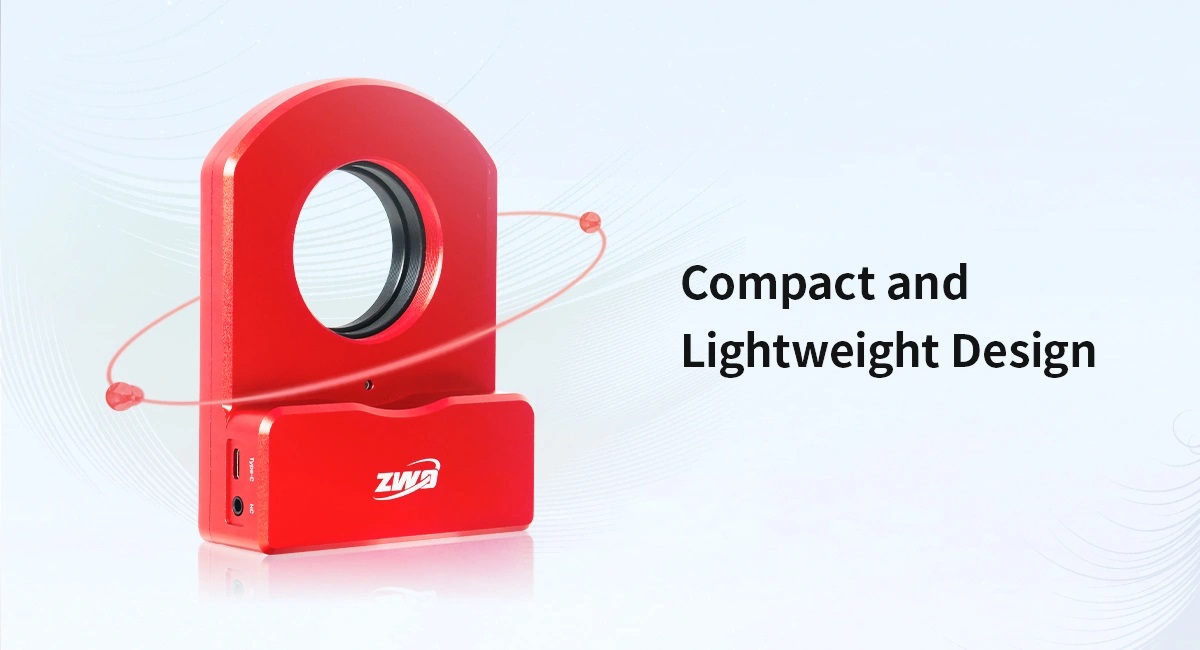

1. Compact and Lightweight Design
The ZWO CAA is sleek yet powerful. Measuring just 16.5mm thick, it replaces the standard ZWO adapter and weighs only 465g, making it a portable yet robust addition to your astrophotography setup.

2. High Efficiency
Smooth and Precise Performance Equipped with a high-efficiency stepper motor, the ZWO CAA offers smooth 360° rotation with zero deformation. Its precision ensures stable operation and effortless adjustment to your desired angle.

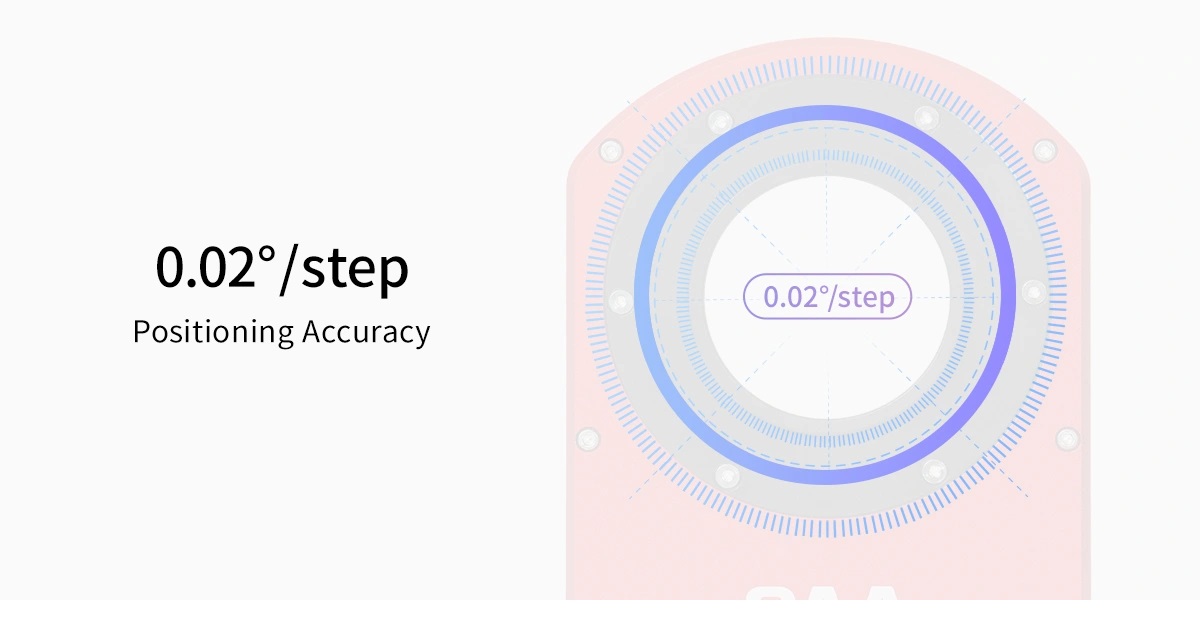

3. High Positioning Accuracy: 0.02°/ step
Unparalleled Positioning Accuracy Achieve pinpoint precision with an accuracy of 0.02° per step. With a total angular error of less than 0.1°, the ZWO CAA delivers flawless alignment for your imaging needs.

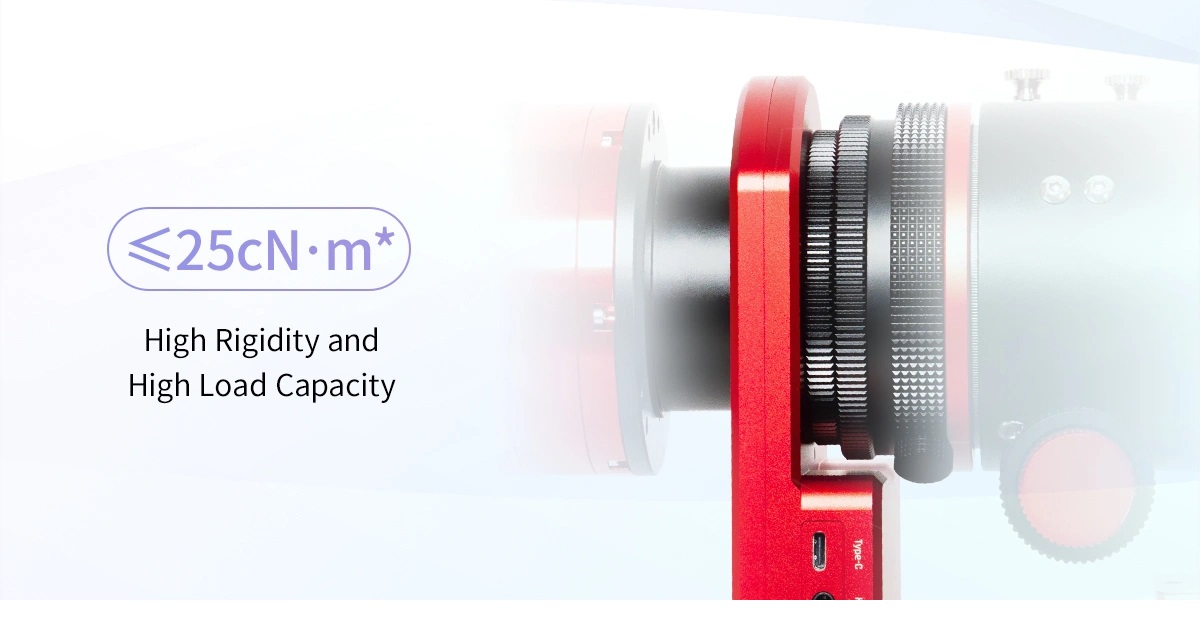

4. High Rigidity and High Load Capacity: <= 25cN.m*
High Rigidity and Load Capacity Built to handle demanding setups, the ZWO CAA can withstand torques of up to 25cNm. It maintains exceptional stability and accuracy even with heavy equipment, tested with configurations of up to 4kg (including ASI461 + 7x50EFW + 1kg additional load).

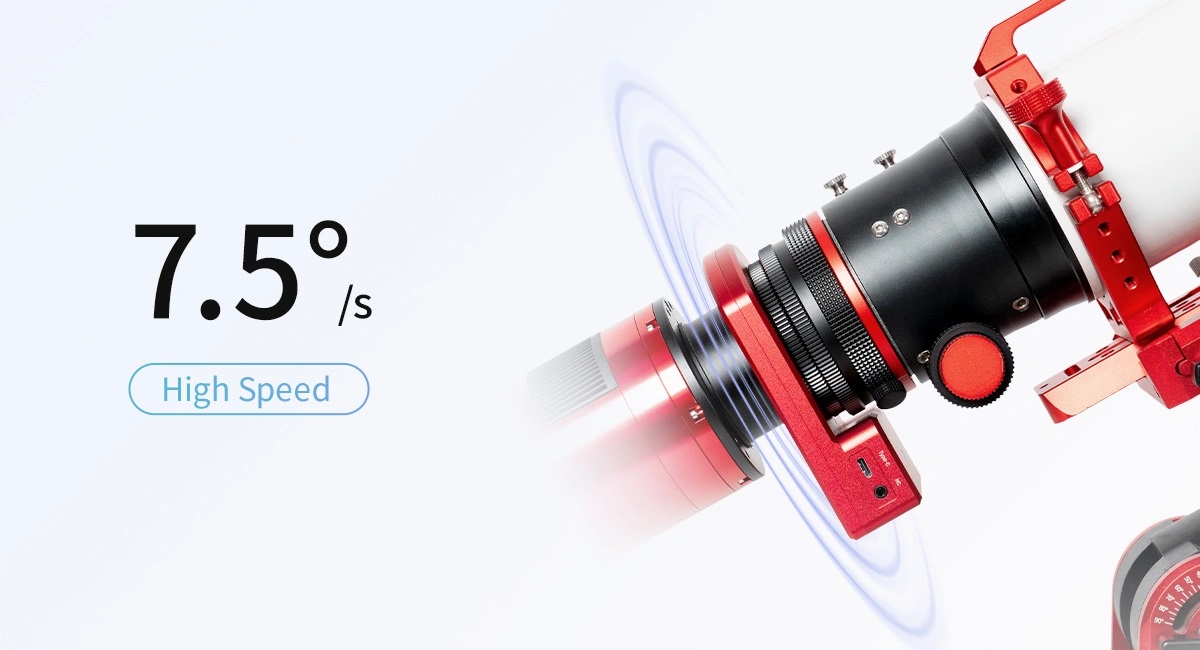

5. High Speed: 7.5°/ second
Fast Rotation Speed Say goodbye to long waiting times! The ZWO CAA rotates at an impressive speed of 7.5° per second, helping you focus on capturing the perfect shot without delays.

6. Multi-Compatibility and Versatility

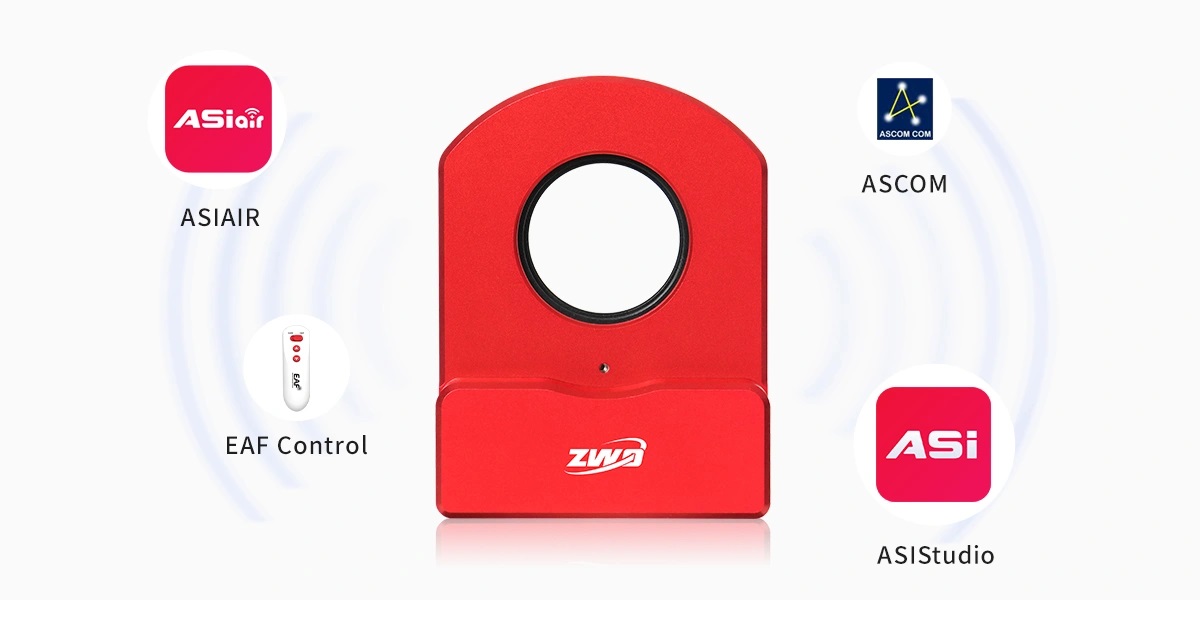

The ZWO CAA is compatible with a wide range of telescopes and supports popular imaging software, including ASIAIR, ASIStudio, and ASCOM. It also features manual control capabilities when paired with a compatible hand controller*.

*Please note: The hand controller is sold separately and is not included in the standard package.

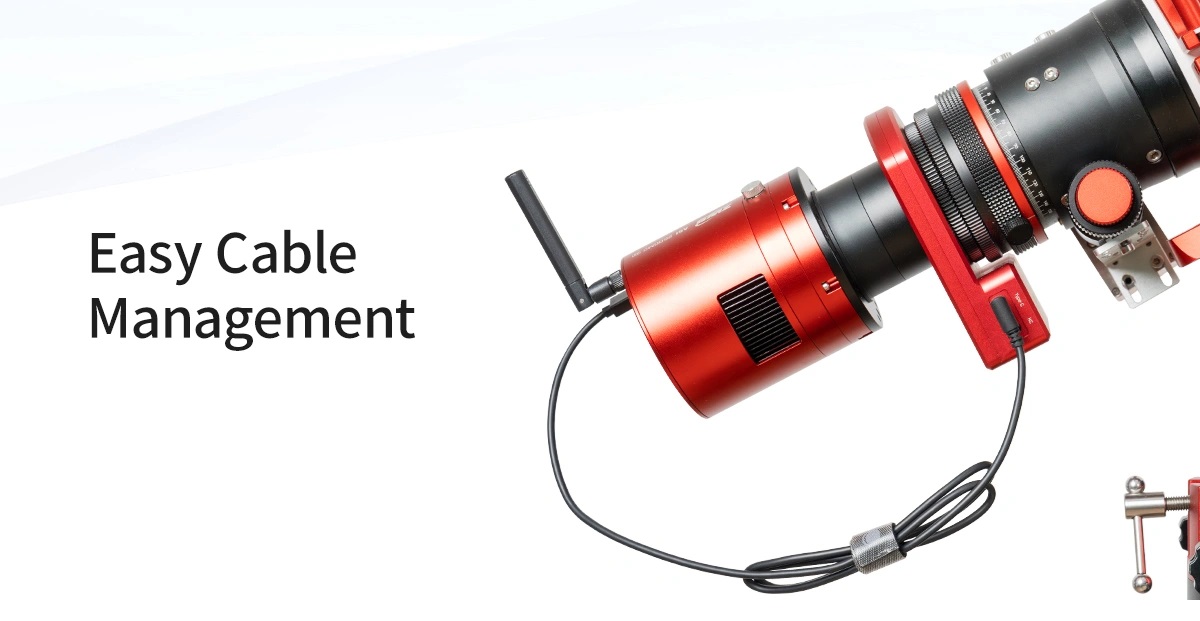

7. Simplified Cable Management
Managing cables has never been easier. The ZWO CAA uses a single Type-C cable for both power supply and control, reducing cable clutter and streamlining your astrophotography setup.

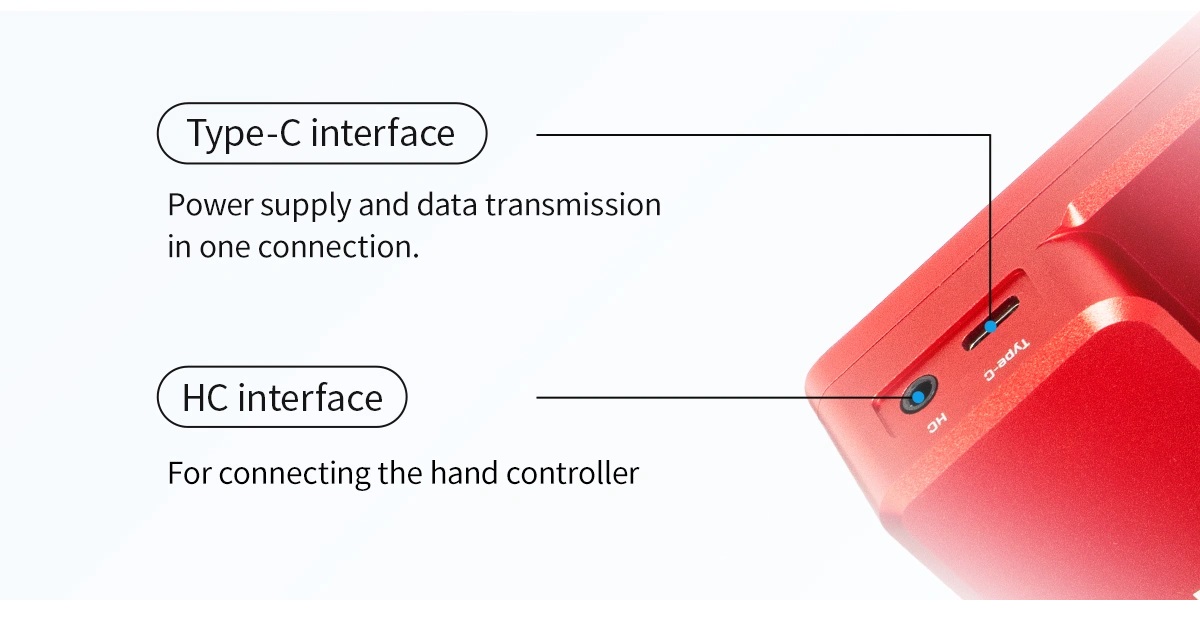

Product Details

- Type-C Interface: Power Supply and data transmission in one connection.
- HC Interface: For connecting the hand controller.

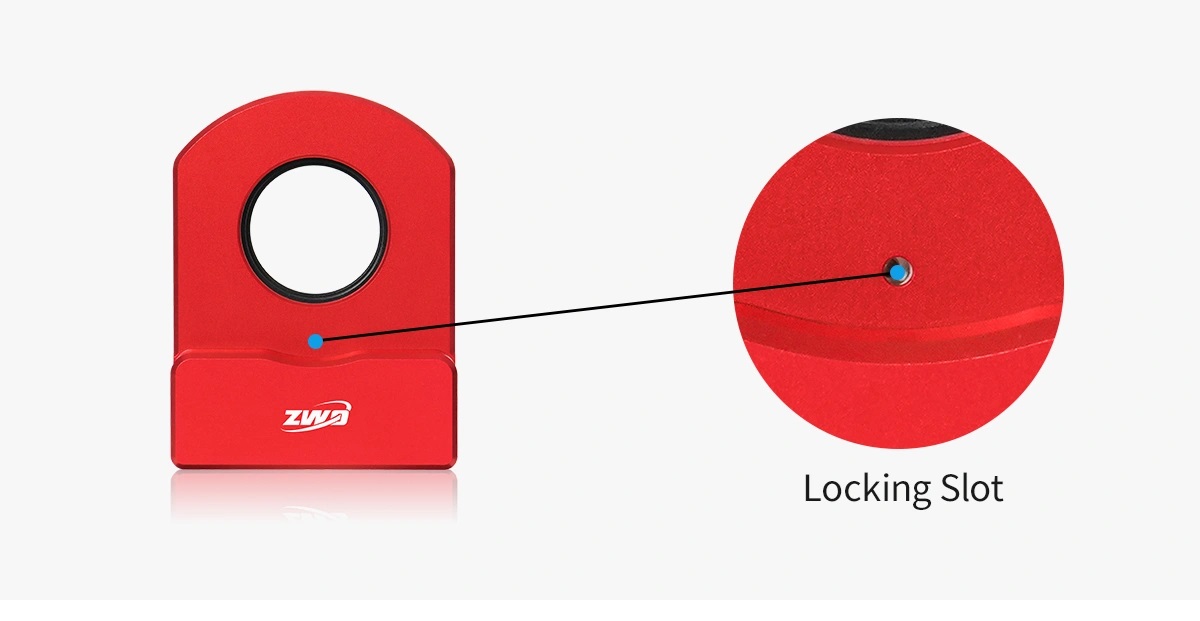

- Locking slot: You can insert a standard hex wrench into the pin hole and lock the rotation to assist in removing jammed adapters or accessories.

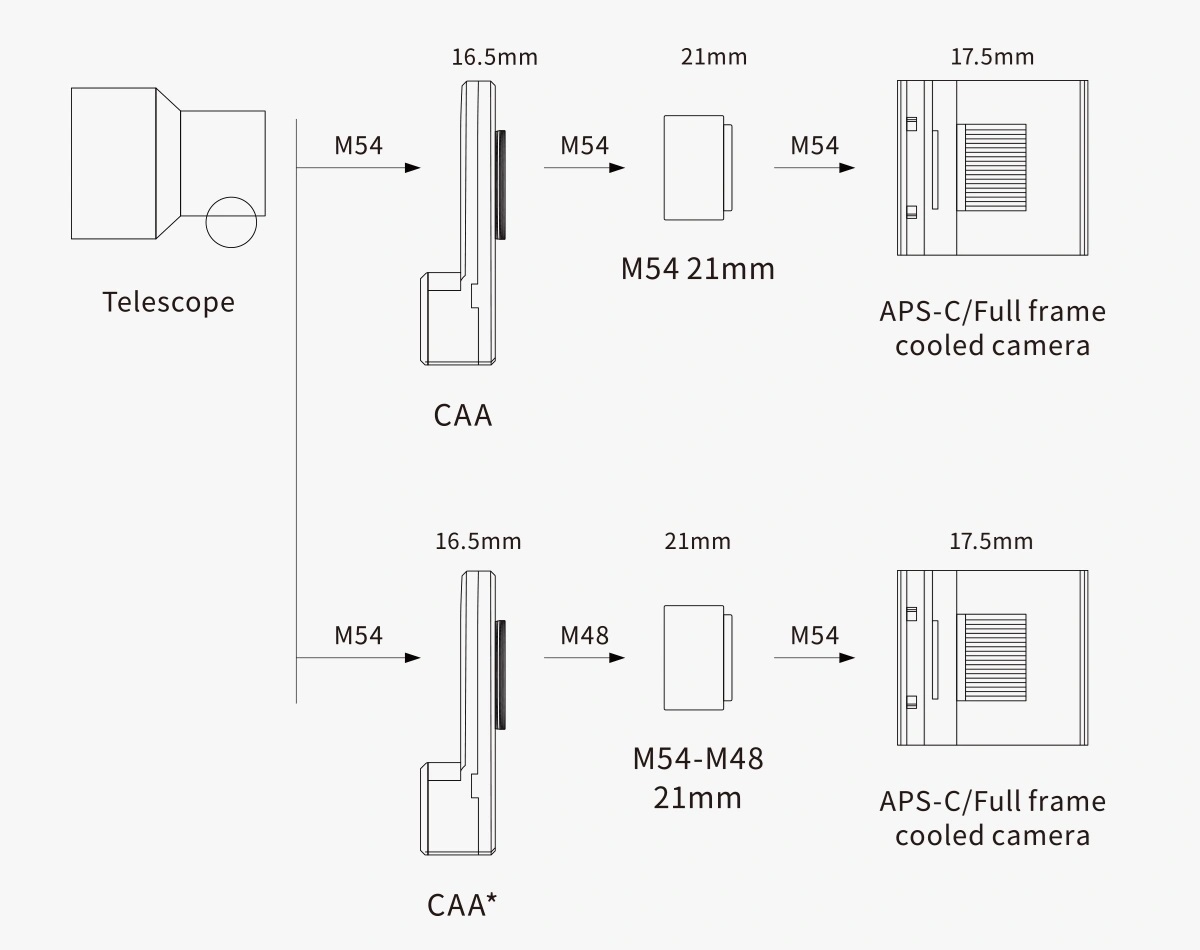

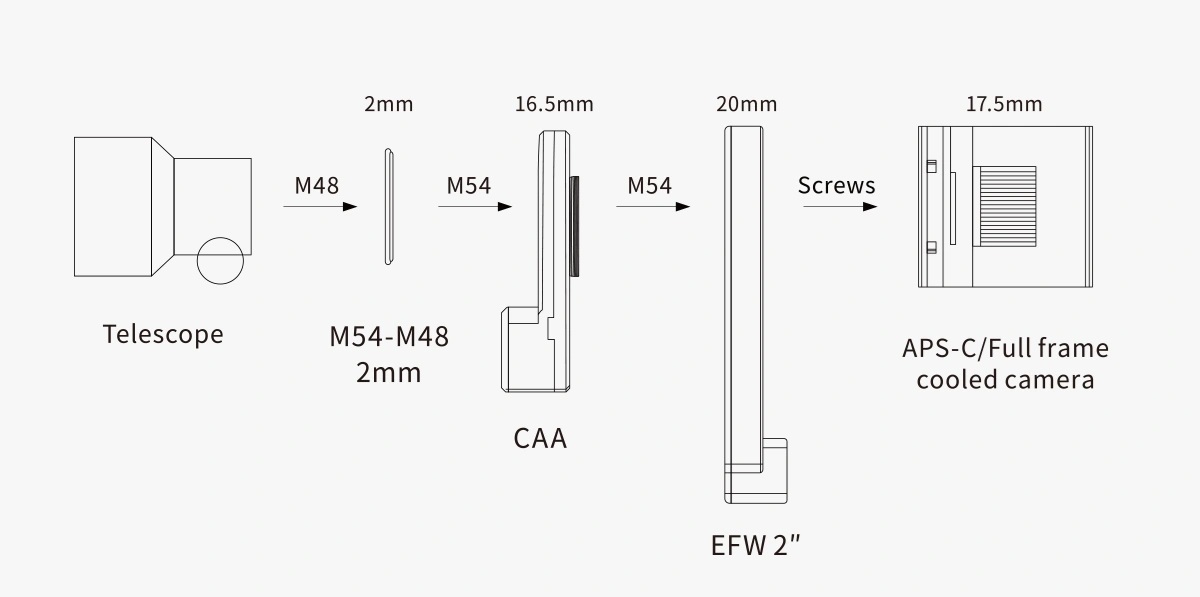

8. Connection
- With the ZWO FF series refractors, with or without the reducer, you can use th4e standard adapters (M48) supplied with the telescope and your camera replacing the 16.5mm adapter with the CAA. If you have a Duo or 2600AIR camera and wish to use M54 then an optional adapter is available as an accessory.

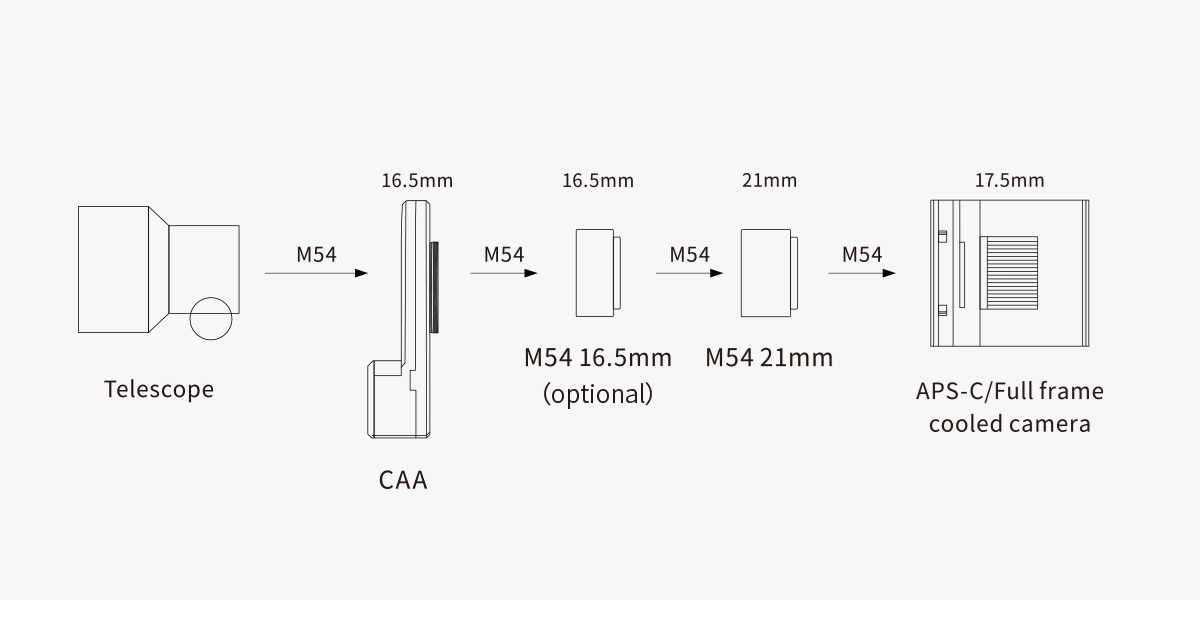

- 55mm back focus distance:

<

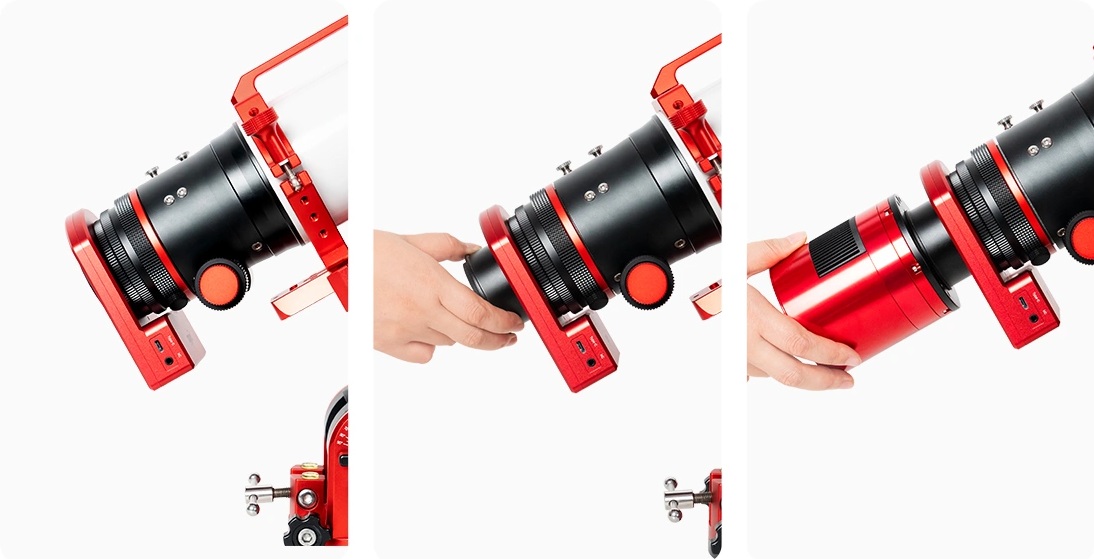

Installation Steps

Step 1: Install the CAA on the threaded drawer tube adapters.
Step 2: Install the optional M54 (21mm) adapter to maintain the focusing distance.
Step 3: Install your camera. If you are using a camera with an M48 interface you can change the ZWO CAA camera threads from M54 to M48 using the supplied accessory plate.

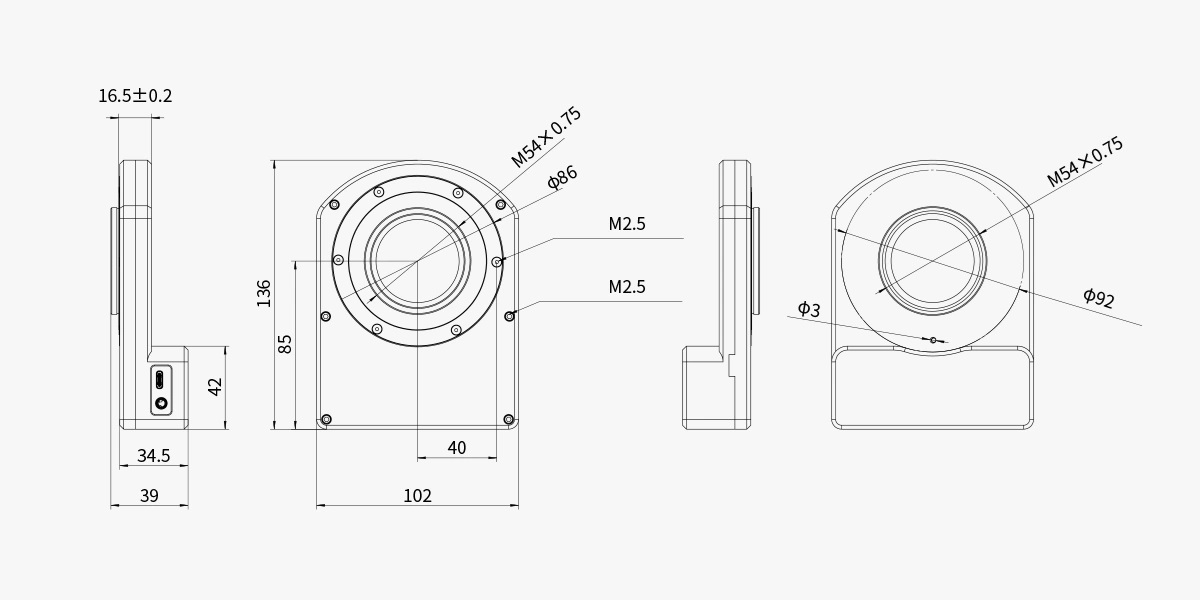

Structural Dimension

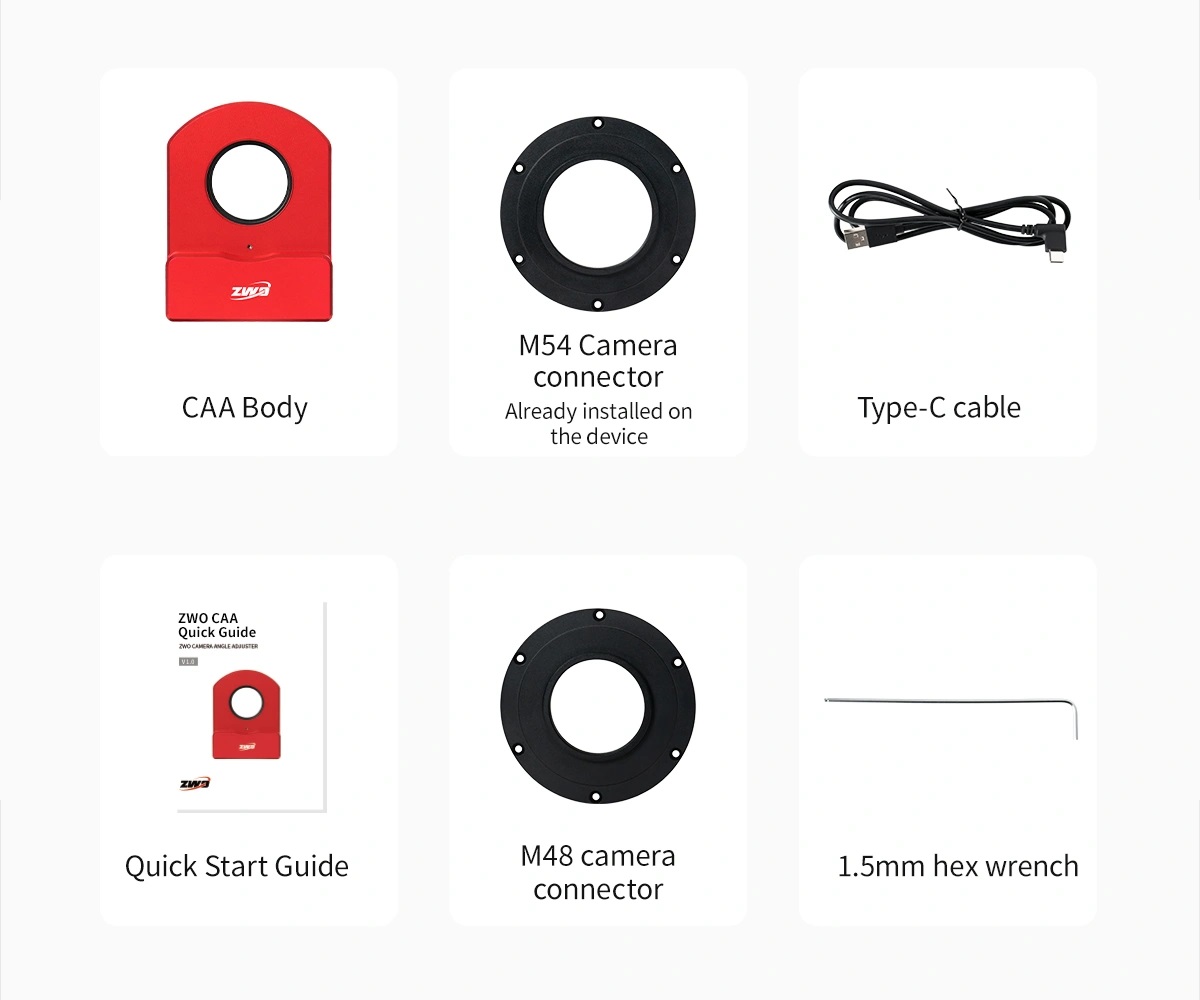

What's in the Box?

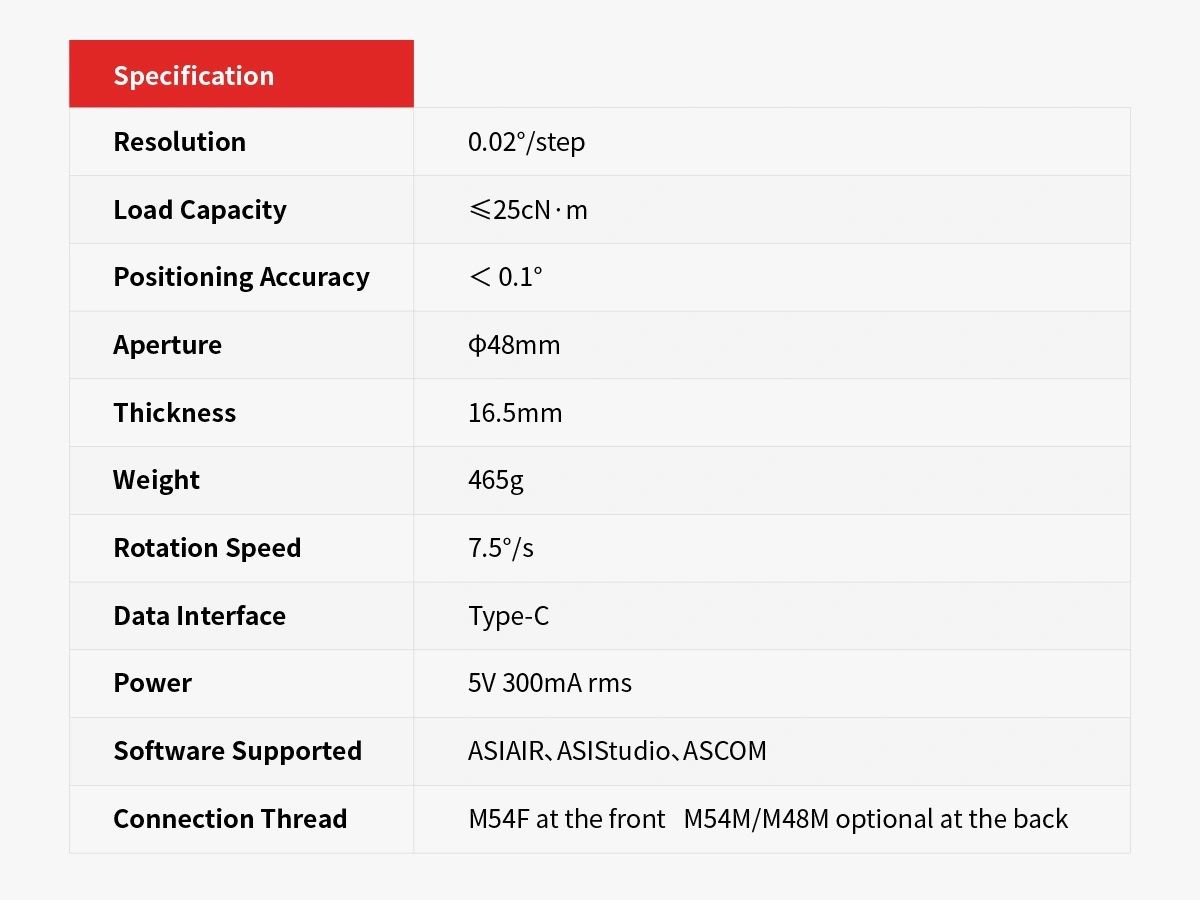

Specification

Why wait? The ZWO CAA is your ultimate tool for seamless astrophotography. Simplify, enhance, and enjoy your stargazing journey today!"
