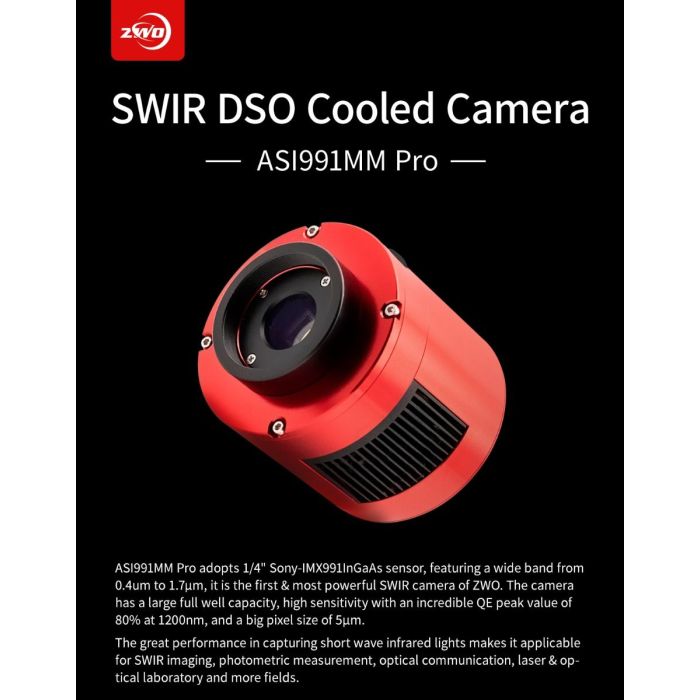

ZWO ASI991MM Pro USB3.0 Monochrome SWIR Camera

ZWO ASI991MM Pro SWIR Monochrome Cooled Camera for Scientific Imaging

The ZWO ASI991MM Pro is a specialized cooled monochrome SWIR (Short-Wave Infrared) camera, featuring the advanced Sony IMX991 InGaAs sensor. With a 0.34MP resolution and 5µm pixel size, this camera is designed to capture exceptional detail in SWIR imaging, photometry, and scientific applications. Covering a broad wavelength range of 0.4μm to 1.7μm, the ASI991MM Pro offers high sensitivity across the visible and infrared spectrum, with peak quantum efficiency (QE) over 80% at 1200nm.

The ASI991MM Pro integrates ZWO’s zero amp glow technology, eliminating unwanted infrared light artifacts common in traditional sensors. Its two-stage TEC cooling system reduces the sensor temperature by up to 35°C below ambient, minimizing dark current noise for cleaner, high-contrast images. This makes it ideal for long-exposure imaging, even under challenging conditions such as cloud cover or daylight.

Built with a durable 1/4" Sony IMX991 sensor and Cu-Cu interconnect technology, the ASI991MM Pro boasts low fixed pattern noise and a high pixel quality. Achieving up to 144 frames per second (fps) with its USB 3.0 connection, the camera is optimized for high-speed data transfer, making it suitable for dynamic imaging needs.

Key Features:

Sensor: Sony IMX991 InGaAs SWIR sensor

Resolution: 0.34MP (656 x 520)

Pixel Size: 5µm

Spectral Range: 0.4 to 1.7μm

Quantum Efficiency: >80% at 1200nm

Read Noise: 21.27e- at low gain

Full Well Capacity: 127,000e-

Frame Rate: Up to 144 fps

Cooling: ΔT of 35°C, dual-stage TEC

Ports: USB 3.0, two USB 2.0 hubs

Back Focus: 6.5mm; 17.5mm with T2 extension

Connections: M42 x 0.75 thread

Applications

Suitable for SWIR astronomy, photometry, daytime star observation, optical communication, and laser research. With its ability to penetrate cloud cover and capture stars during daylight, the ASI991MM Pro is perfect for researchers needing precise short-wave infrared imaging in varied environments.

The ZWO ASI991MM Pro stands out as a high-performance, reliable tool for professionals in scientific and astronomical imaging fields, offering superior SWIR sensitivity and TEC cooling.
