Dispatch In 3-5 Days
SKU
ZWO-ASI6200MC-P

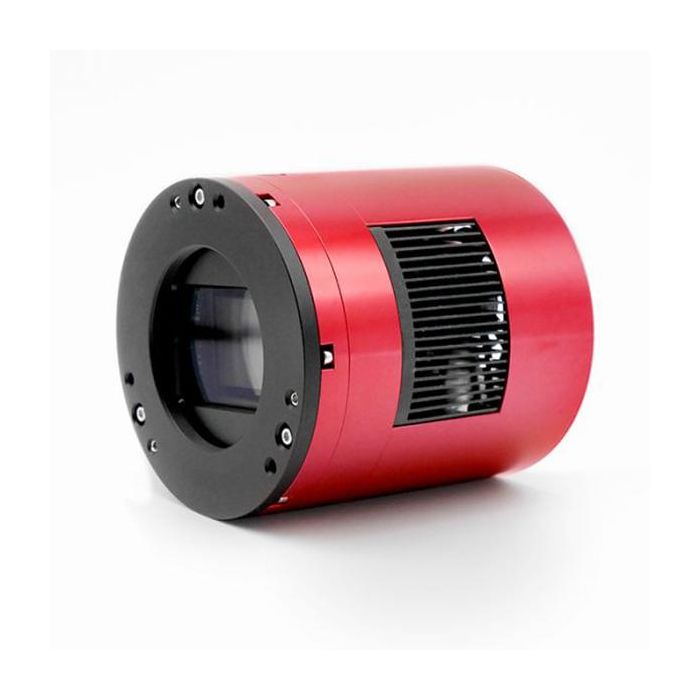

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera

Our Price $6499.00
Frequently Bought Together
Please select the check box and click on add to cart

ASI 6200MC Pro uses Sony’s latest back-illuminated IMX455 Full Frame format native 16-bit ADC sensor. It has3.76µm, ultra-low 1.2e readout noise and an innovative breakthrough resulting in zero amp-glow.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

The new ASI 6200 MC Pro camera is the colour version of the ASI6200MM Pro. It combines an optimal set of characteristics for you to be able to take amazing images. Its huge sensor and full-frame format will let you capture detailed, large images. If you feel that a one-shot camera is preferred over a monochrome camera (which requires dedicated equipment and exposure using different filters), then this camera is for you. Some of the highlights include:

  • Sony IMX455 full-frame format sensor – giving a great field of view
  • True 16-bit ADC – giving a high dynamic range of up to 14 stops!
  • 62-megapixel sensor with a pixel size of 3.76um – huge sensor and relatively small pixel size to capture amazing detail across a large field-of-view
  • A large well depth of4ke- – no need to worry about saturating stars
  • Ultra-low readout noise of 1.2 e- – bringing out more details in your images with improved dynamic range
  • Zero amp-glow – even during long exposures, which means one thing less to worry about in post-processing

Amazing Craftsmanship, Lightweight body, Solid image quality:

We have been working hard to reduce the weight of the camera while still improving the overall performance. After years of technical accumulation and repeated mass-reduction experiments by ZWO engineers, ZWO finally got the weight of the ASI6200 down to just 700 grams.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

Full Frame format:

The ASI6200MMC Pro uses a full-frame format. The sensor length and width are 36mm * 24mm respectively, and the diagonal is 43.3mm. This is a 62MP camera with a small pixel size of 3.76um that can accommodate a large well depth of 51.4ke.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

Native 16bit ADC:

ASI6200MC Pro is our first batch of CMOS astronomy cameras with true 16-bit ADC. It is not a CCD-style 16-bit ADC – it really can achieve a dynamic range output of 14 stops. This significantly improves the image sharpness and contrast, and the contrast gradients are smoother and more natural-looking.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

IMX455 backlit sensor:

Sony’s back-illuminated CMOS image sensor improves the sensitivity and noise reduction – the key factors to enhancing image quality. It does this by radically realigning the fundamental pixel structure from front-illumination to back-illumination, while still retaining the advantages of CMOS image sensors such as low power consumption and high-speed operation.

With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode), impede photon-gathering carried out by the on-chip lens. A back-illuminated structure minimizes the degradation of sensitivity to the optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors. These components have been moved to the back side of the silicon substrate.

Camera Performance:

The ASI6200MC Pro has excellent performance with a dynamic range of up to 14 stops that will greatly reduce the issue of overexposed images, and make colour gradients look smoother and more natural-looking.

When the gain value is set to 100, the HCG high gain mode is turned on. We’re not saying it’s magic…but we’d like to think it is pretty close. With the HCG mode turned on, the readout noise is greatly reduced, and the dynamic range is unchanged.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

Zero Amp Glow:

Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the telltale signs of ‘amp glow’. As the ASI6200MC Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

With amp glow – exposure 300 second exposure

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

ASI6200 frame with no amp glow – Exposure 300 seconds

Anti-dew

ASI6200MC Pro comes with a polyimide heater that can avoid any dew problems.

The anti-dew heater which completely fits the protective window will heat it to avoid any dew problems.

The heat anti-dew heater power is around 5W and can be turned off in software to save power.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

QE value:

The QE peak value of the ASI6200MC Pro is 91%.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

Two-stage TEC cooling, ultra-low dark current:

Thanks to the two-stage TEC cooling, ASI6200MC Pro can lower the CMOS sensor temperature to more than 35 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

*The Delta T 35℃ is tested at 30℃ ambient temperature. It might get down when the cooling system is working for a long time. Also, as the ambient temperature falls, the Delta T would also decrease.

The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0 °C, the dark current noise is only 0.003e/s/pixel. This means a 300s exposure will only cause a dark current noise of 0.9e-, which is completely negligible!

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P
Please notice that the camera needs to be connected to an external 11-15v power supply to implement the cooling function. We recommend you use a 12V@3A DC adapter (5.5*2.1mm, center pole positive) or a lithium battery with 11-15V to power the camera. If you don’t have one, please click here to buy a 12V power adapter. There are 4 different standards for different countries, please make sure you select the correct adapter when placing the order.

USB3.0 & 256M DDR3 Memory:

The ASI6200MC Pro is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

Mechanical Diagram:

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

What is in the box?

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

The best solution of 55mm back focus length:

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P

Connecting Diagram:

ZWO ASI6200MC Pro Colour Astronomy CMOS Camera ZWO-ASI6200MC-P
More Information
Sensor Type IMX455
Resolution 62MP (9576*6388)
Sensor Size Full Frame
Pixel Size 3.76μm
Frames Per Second 2 FPS
ADC 16bit
Back Focus 17.5mm
Cooling Yes
Power Requirements 12V 5A DC
Weight 700g
