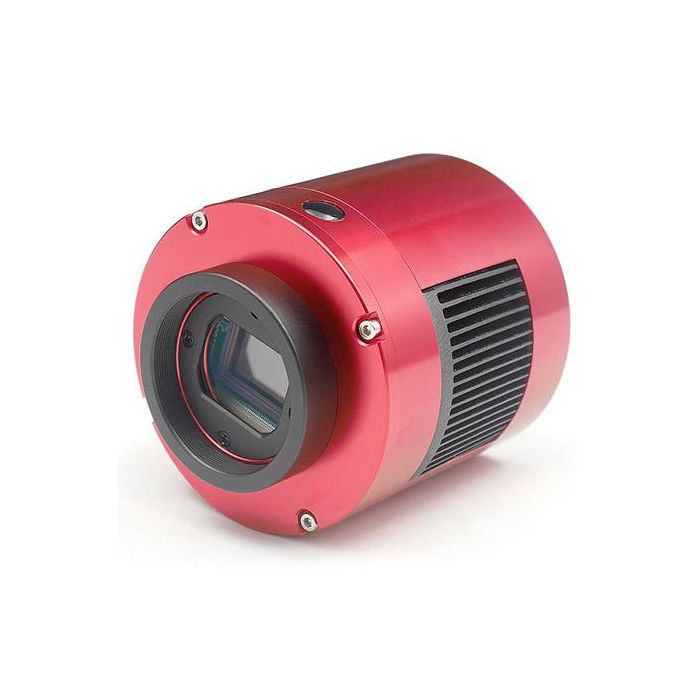

ZWO ASI183MM Pro USB3.0 Cooled Monochrome Astronomy CMOS Camera

Our Price $1649.00
Frequently Bought Together
Please select the check box and click on add to cart
The ZWO ASI183MM Pro Cooled Monochrome CMOS Telescope Camera helps you see deep space in high-contrast. Engineered with a peak Q.E. of 84%, and optimum cooling to 45-degrees C below ambient temperature, capture stunning details of planetary and deep space objects.

THE ASI 183 MM PRO CAMERA SPECS AT A GLANCE

EXPERIENCE DEEP SPACE IMAGING WITH THE ASI 183MM PRO CAMERA

Planetary and Solar Imaging Save time with the ASI183 Monochrome! It can record full 20.2 MP videos at 19 frames per second and capture the entire sun with its 1350 mm focal length. If you enjoy speed shooting planets like Jupiter and Saturn, the ASI183 clocks out at 308.17 frames per second at 320 x 240 resolution!





REFINED MECHANICS

Sony IMX183CLK-J CMOS Sensor Offering a higher resolution, high Q.E., and efficient signal-to-noise ratio, the sensor is approximately 15.9 mm, and is back-illuminated for higher Q.E.! It can record 20.2-megapixel videos at 19 frames per second, which is 48% more resolution than an ultra, high-definition 4k video! The Sony CMOS sensor offers 12 stops of dynamic range, giving you fuller images! When the gain settings are at 0, the read noise reaches 3e, and when the gain settings are at 30, it offers a low read noise of 1.6e. USB 3.0 Port & USB 2.0 HUB Get faster transmission with the USB 3.0 providing 5 GB to allow the ASI183MM to run at 19 fps. Get more from your camera by connecting to different accessories while having better cable management.





POWERFUL PERFORMANCE

High Quantum Efficiency Capture high-contrast images with the ZWO ASI183 camera's incredible light-gathering ability. The ZWO ASI183 has a peak Q.E. of 84%! Also, the H-alpha emission line is recorded at 60% and doesn't record less than 50% in the visible spectrum. High-Speed Video Recording Focus in real-time and get the most data for your solar and planetary imaging setups with a 1-inch optical. The ASI 183 uses a high sensitivity back-illuminated structure with a high resolution of 2.4 μm square unit pixel. See how it compares at different rates below. 12-bit ADC 5496 x 3672 19fps 3840 x 2160 36.12fps 1920 x 1080 70.48fps 1280 x 720 103.23fps 640 x 480 149.53fps 320 x 240 271.19fps



SPECIFICATIONS

ADC 12 bit
Back Focus 6.5 mm
Camera Connection M42 x 0.75
Color or Mono Monochrome
Cooled Cooled
Delta T 45C
Dynamic Range 12 Stops
Free Shipping Yes
Full Rez Frame Rate 19fps
Full Well 15ke
Max Frame Rate 308.17fps
Mega Pixels 20.2 mp
MP 13 to 20 MP
Peak QE 84%
Pixel Array 5496 x 3672
Pixel Size 2.4 microns DC
PS 3 Microns or Smaller
Read Noise 3e
Sensor Diagonal 15.9 mm
Sensor Type CMOS
Sensor Sony IMX183CLK J


INCLUDED ITEMS

Included With Cooled Versions
  • Nylon Camera Bag.
  • 21 mm M42 Extender.
  • 16 mm M42 extender.
  • 11 mm female M42 to Female M42 extender.
  • Two 0.5 meter USB 2.0 cables.
  • Two spacers.
