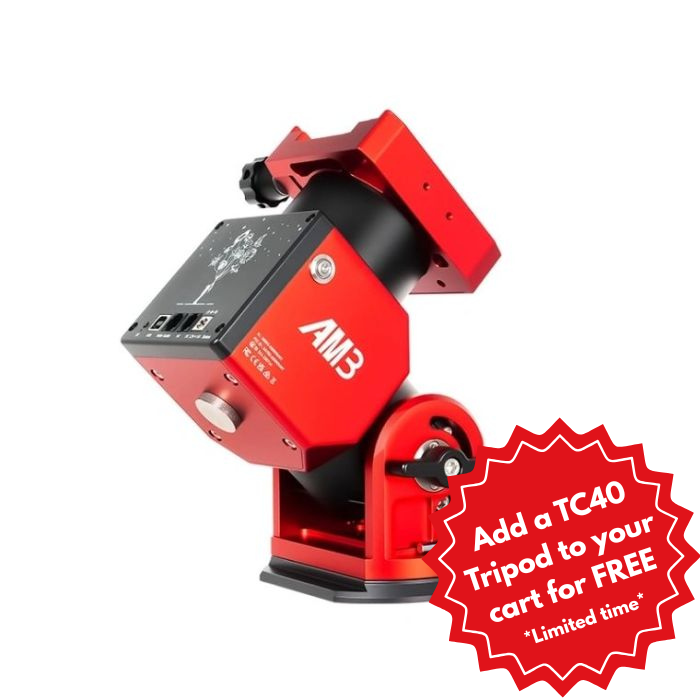

ZWO AM3N Harmonic Drive Mount

ZWO AM3N Harmonic Drive Mount – Lightweight Power, Ultimate Precision
The ZWO AM3N Harmonic Drive Mount is an advanced, portable mount designed for astrophotographers and astronomy enthusiasts who demand precision without compromise. Engineered with cutting-edge Strain Wave Gear technology, the AM3N combines a compact, lightweight build with exceptional load capacity and stability - ideal for both field use and backyard setups.

Despite weighing just 3.9 kg, the AM3N can handle an impressive 8 kg payload without a counterweight and up to 13 kg with one, making it one of the most versatile mounts in its class. Its dual operating modes (Equatorial & Alt-Azimuth) offer flexibility for imaging or visual observation.

This new AM3N with the following upgrades of
1. Cable Snag Prevention
2. Operating temperature of -20°C to 40°C
3. Magnetic M6 Hex Wrench Storage
4. Built-in Bluetooth and Wi-Fi

Key Features
Dual Mount Modes: Switch easily between Equatorial (EQ) and Alt-Azimuth (AZ) modes for different observing needs.
Wireless Connectivity: Control your mount via Wi-Fi or Bluetooth using the ZWO ASIAIR app or included hand controller for seamless operation.
Strain Wave Gear Technology: Delivers ultra-precise tracking with a 300:1 reduction ratio and minimal backlash.
Robust Payload: Supports 8 kg (no counterweight) and 13 kg (with counterweight).
Lightweight Design: At under 4 kg, the AM3 is perfect for travel and on-the-go astrophotography.
ASIAIR Integration: Enjoy a fully wireless, app-based astrophotography experience.

Specifications
Mount Type: Equatorial / Alt-Azimuth
Drive System: Strain Wave Gear + Synchronous Belt
Periodic Error: < ±20″
Payload Capacity: 8 kg (no counterweight), 13 kg (with counterweight)
Latitude Range: 0° – 90°
Azimuth Adjustment: ±6°
Dovetail Compatibility: Vixen & Losmandy
Weight: 3.9 kg
Power Consumption: Low standby; efficient tracking & GoTo
Ports: ST4 Guide Port, USB
Wireless: Wi-Fi & Bluetooth
Operating Temperature: -20°C to 40°C

SKU: ZWO-AM3N
