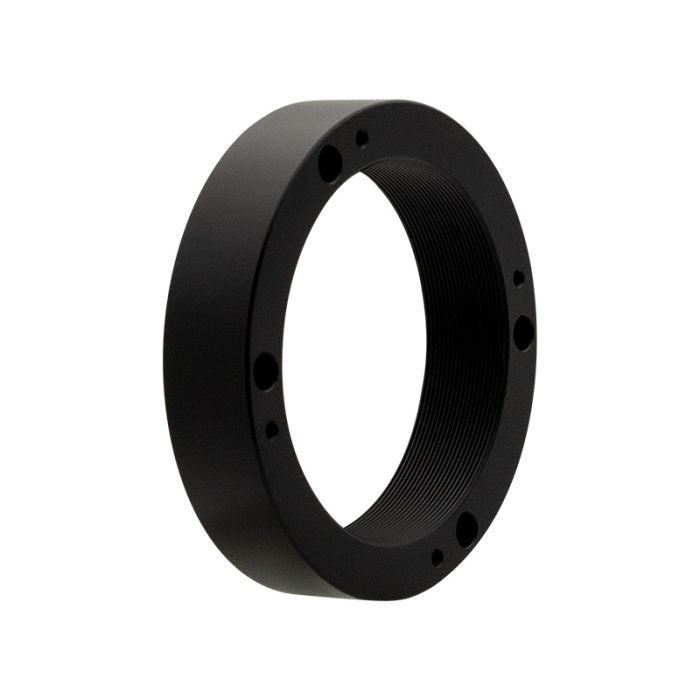

ZWO 70mm diameter M54 adapter for OAG-L and ASIDSO cameras
ZWO M54 Adapter: Optimize Your Astrophotography Setup
The ZWO M54 Adapter is a specialized accessory designed to enhance the functionality of ASI cooled cameras, offering a seamless connection to the Off-Axis Guider Large Prism (OAG-L). This adapter is perfect for astrophotographers seeking a professional and efficient setup.
Key Features:
Specific Design: Tailored for use with ASI cooled cameras, replacing the need for a 20mm ZWO EFW.
Optimal Back Focus: When combined with the 5mm sensor tilt adapter, it achieves the necessary 55mm back focus.
Filter Compatibility: Allows the insertion of a ZWO 2” filter, adding versatility to your imaging system.
Technical Specifications:
Thickness: 15mm, maintaining a compact profile in your imaging train.
Build Quality: Crafted from high-quality materials for durability and longevity.
Connections: Features a threaded M54 male interface for the OAG-L and a female M54 thread for the color cooling camera.
Additional Port: Includes a CS port for connecting other astrophotography accessories.
Simple Installation Process:
Attach the filter to the M54M-M48F adapter via threads.
Fix the filter unit to the M54 adapter.
Secure the M54 adapter to the camera using the provided screws.
Remove the M48 plate from the OAG-L and align it with the adapter, then fasten it.
Reinstall the M48 plate on the OAG-L.
Product Details:
Model: ZWO-D70-M54F, ensuring authenticity and quality.
Purpose: Replaces the EFW for a direct connection between the OAG-L and color cooling cameras.
Enhance Your Astrophotography Equipment:
The ZWO M54 Adapter is an essential addition for astrophotographers aiming to streamline their setup while ensuring precise guiding and imaging. Its robust construction and thoughtful design make it a valuable tool in achieving stunning celestial captures.
