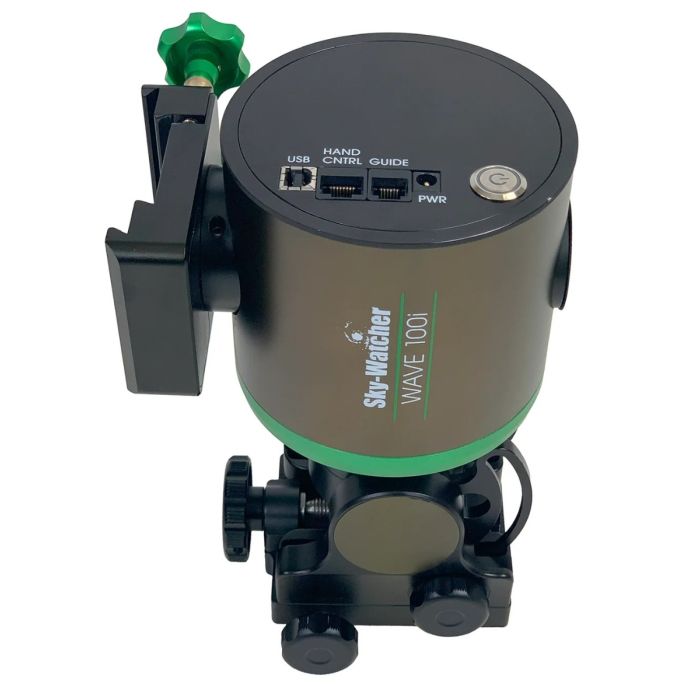

Skywatcher Wave 100i Strainwave Harmonic Mount
Introducing the Sky-Watcher Wave 100i Strainwave Mount: Bringing Balance to the Force
Designed for serious astronomers and astrophotographers seeking precise control, the Wave 100i offers exceptional performance in a compact package. Weighing just 9.5 pounds, it boasts a 22-pound payload capacity (33 pounds in EQ mode with the optional counterweight kit), making it ideal for grab-and-go setups or equatorial imaging. With a whisper-quiet slew speed of 10 degrees per second, it can even track satellites and space stations.
Benefits of Strainwave Design:
- Precision Tracking: Ensures accurate tracking for longer exposure imaging.
- Low Backlash: Smooth motion provides stable tracking.
- Compact Design: Easy to transport.
- High Payload Capacity: Accommodates a wide range of equipment. 10kg payload without counterweight, 15kg payload with counterweight
Key Features:
- Payload Capacity: 22 pounds (10kg) without counterweights, up to 33 pounds (15kg) with optional counterweights.
- Transmission Ratio: 300:1 for smooth slewing and tracking.
- Latitude Range: 0° to 90°
- Multiple Tracking Modes: Supports sideral, lunar, and solar tracking for versatile imaging options.
Skywatcher Wave 100i Strainwave Harmonic Mount features:
- Wave 100i GoTo strain wave head
- EQ and AZ modes
- Weighs 9.5 pounds (4.3kg)
- Stepper motor + belt driver and Harmonic reducer transmission mode
- 22-pound (10kg) payload capacity without optional counterweight
- 33-pound (15kg) payload capacity with optional counterweight
- Dual Dovetail & Losmandy hybrid saddles
- Included secondary saddle
- Latitude ranges from 0° to 90°
- Red LED for latitude scale and bubble level
- Wi-Fi and Bluetooth
- RA power off braking function
- RA and DEC home position functions
- Requires 12V 2A power (not included)
Optional Accessories
The Wave series features a total line of accessories to complete your astronomical experience, including a carbon fiber tripod, pier extension, and stainless steel counterweight kit.
-
-
