Sky-Watcher L-Bracket Dovetail

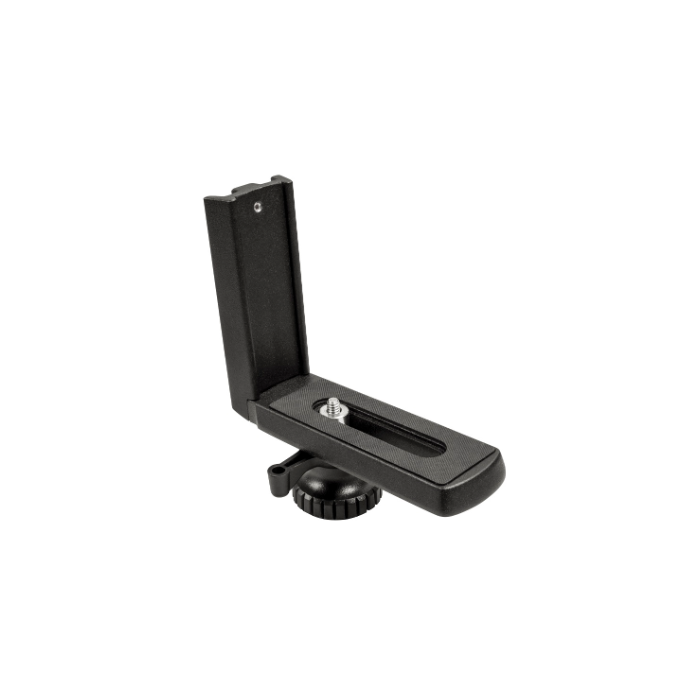

The Sky-Watcher L-Bracket Dovetail is an L-shaped Adaptor Plate to allow the attachment of photographic equipment via a standard tripod bush (1/4-20 standard photo thread), capable of securely mounting up to a 100mm aperture (4 inch) telescope or 80mm (3.2 inch) binoculars.

The Sky-Watcher L-Bracket Dovetail is supplied with the Sky-Watcher AZ4 tripod and AllView mount. It is also suitable for use with the Sky-Watcher SynScan AZ GOTO.

Side dovetail bar (trapezoid shaped)
Length of dovetail bar: 108mm
Width of wider part of the trapezoid base: 43mm
Thickness: 14mm

Base (bottom part with the photo threaded bolt)
Length 125mm (together with the thickness of the dovetail bar on the side it’s 135mm)
Width 44mm
Thickness: 12mm
Length of recess: 70mm
