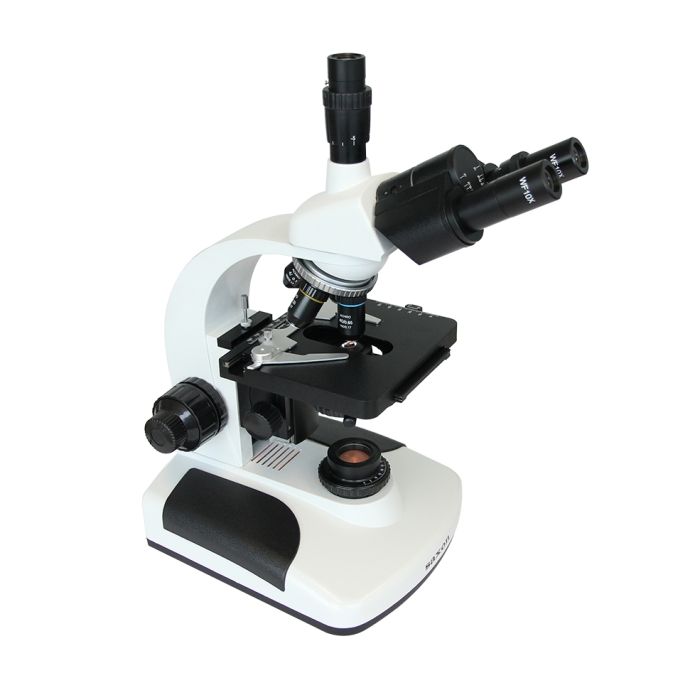

Saxon RBT Researcher Biological Microscope with Trinocular Head 40x-1600x

$1,149.00
or 4 interest-free payments of $287.25
Learn more

The Saxon Research NM11-4100 Biological Microscope with Trinocular Head packs power and variation with 4x, 10x, 40x and 100x achromatic objectives. With a WF16x eyepiece you can get up to 1600x magnification.

+ -
SKU
SAX-311009
In stock

  45mm DIN Achromatic Objective:4x,10x,40x(S),100x(S, Oil) Wide Field Plane-Scope Eyepiece:

WF10x and 16x Total Magnification:40x-1600x Articulated Free Trinocular Head,Interpupillary Distance:55-75mm; 30º Inclined,360º Rotatable Double Layers Mechanical Stage:

140X155mm, Moving Range X-Y:70X50mm Ø2-Ø30mm Iris Diaphragm And 32 Filter ABBE Condenser:

N.A. 1.25 Coaxial Coarse And Fine Focusing Adjustable Mechanism:

30mm Precision:0.002mm Built-in illumination optional:

Halogen Lamp 6V/20W,Incadescent Lamp 20W,Fluorescent Lamp 5W,LED Lamp 1W,LED Lamp with Rechargeable Device and Kohlar Illumination System In the box;

- saxon WF10x, WF16x Eyepiece These are brand new widefield WF10X and WF16X microscope eyepieces. They fit most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost.
- Filter lens (green, blue and yellow) Microscope filters are used for both observation and photo microscopy. Green Filter can improve with the use of a green filter. Phase contrast objectives are also created to give the best phase images in green light. Blue Filter can provide a pale gray-blue hue to the field of view and is often used to balance the light created by tungsten or halogen microscope lights to balance out the colour of the microscopy light. Yellow filter is used to fine-tune the colour balance of tungsten and halogen microscope light sources for photomicrography with colour film.
- Immersion oil It can improve microscope resolution and magnification power by providing better connection between the observed sample and the lens. The oil is safe for the optics. It is easily removed without leaving any residue.
- saxon adapter The adapter can support AC powered of this microscope.
- saxon CCD Linker It's a microscope adapter for a C-mount-Camera.
- saxon Eyepiece Linker It can be used to connect eyepieces
- saxon Dust Cover Clear, vinyl dust covers for the protection of your microscopes.

Product code: SAX-311009

More Information
Weight 8.000000
Type Biological
Magnification 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x
Focuser Type Coarse & Fine
Illuminated Yes
