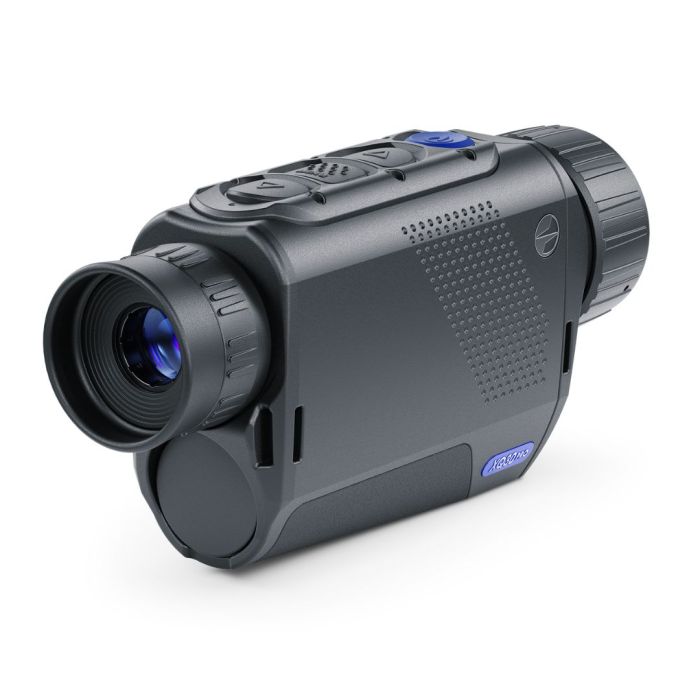

Pulsar Axion XQ30 Pro Thermal Monocular
Pulsar Axion XQ30 Pro Thermal Monocular
Brilliant thermal performance at an affordable price. The Pulsar Axion XQ30 Pro Thermal Monocular delivers high-sensitivity thermal imaging in a compact, pocket-friendly design. Featuring a 384x288 thermal sensor with 17μm pixel pitch and NETD <20mK, this unit produces crisp, high-contrast thermal images even in low-visibility conditions such as heavy rain, fog, or cold nights. Its detection range of up to 1050 metres and wide field of view make it a versatile tool for hunters, wildlife observers, and security professionals.
With a durable magnesium alloy body, the Axion XQ30 Pro is built for rugged outdoor use. Despite its toughness, it weighs just 300g with the battery installed, making it one of the lightest thermal monoculars in its class. The symmetrical button layout offers easy operation for both right- and left-handed users, while intuitive magnification controls make target acquisition quick and comfortable.
Stream Vision 2 App Integration
Connect to the Stream Vision 2 mobile app via Wi-Fi and enjoy full remote control, live video streaming, firmware updates, and cloud-based storage for photos and videos — available on both iOS and Android.
Key Features
- High-sensitivity 384x288 thermal sensor with 17μm pixel pitch
- NETD <20mK for clear thermal contrast in harsh conditions
- Detection range up to 1050m with 2x to 8x digital magnification
- 13.3° field of view for efficient scanning and target tracking
- AMOLED display with 640x400 resolution for smooth, vivid visuals
- Durable and lightweight magnesium alloy body
- 8 colour palettes including White Hot, Black Hot, Ultramarine, Sepia, and more
- Photo, video, and audio recording with 16GB internal storage
- Interchangeable APS 3 rechargeable battery with 7.5 hours of runtime
- Quick USB charging and external power support
- Compact size for single-handed operation in the field
- IPX7 waterproof rated for full weather resistance
Technical Specifications
| Sensor Type | Thermal (Uncooled microbolometer) |
| Sensor Resolution | 384x288 pixels |
| Pixel Pitch | 17μm |
| NETD | ≤20mK |
| Frame Rate | 50 Hz |
| Lens | 30mm f/1.2 germanium |
| Detection Range | 1050 metres |
| Magnification | 2x to 8x (digital zoom) |
| Field of View (HxV) | 23.3 × 17.5 m @100m |
| Angular Field of View | 13.3° |
| Display Type | AMOLED |
| Display Resolution | 640x400 pixels |
| Eye Relief | 14 mm |
| Video Resolution | 528x400 pixels |
| Video/Photo Format | .mp4 / .jpg |
| Internal Memory | 16GB |
| Wi-Fi Frequency | 2.4 / 5 GHz |
| Wi-Fi Standard | IEEE 802.11 b/g/n/ac |
| Battery Type | APS 3 Li-ion Rechargeable Battery |
| Battery Capacity | 3200 mAh |
| Battery Life (t=22°C) | Up to 7.5 hours |
| Charging Interface | USB Type-C |
| Waterproof Rating | IPX7 |
| Operating Temperature Range | -25°C to +40°C |
| Mounting Interface | 1/4" socket |
| Dimensions | 144 × 41 × 69 mm |
| Weight (with battery) | 300g |
What’s in the Box
- Pulsar Axion XQ30 Pro Thermal Monocular
- APS 3 Rechargeable Battery Pack
- Charging Dock
- USB Type-C Cable
- Carry Case
- Lens Cloth
- User Manual
| Manufacturer | Pulsar |
|---|
3 Years Limited Warranty
1 Year Battery Warranty
