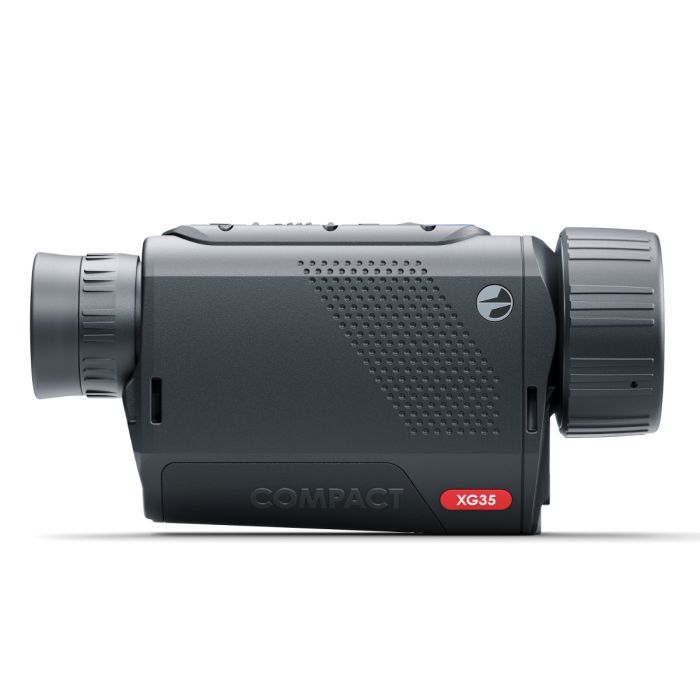

Pulsar Axion Compact XG35 Thermal Monocular
Pulsar Axion Compact XG35 Thermal Monocular
High-performance thermal imaging in a pocket-sized package. The Pulsar Axion Compact XG35 Thermal Monocular delivers premium thermal capabilities in a truly compact and lightweight body. Featuring a European-made 640x480 thermal sensor with 12μm pixel pitch and NETD <20mK, it offers detailed thermal imagery with high contrast even in fog, rain, or cold. Its long-range detection of up to 1750 metres and wide 12.5° field of view make it a powerful tool for scanning open fields or wooded areas with ease.
Built for outdoor enthusiasts, wildlife spotters, search and rescue teams, and security professionals, the Axion XG35 blends superior image quality with advanced functionality. Digital zoom up to 20x, photo and video recording, 8 colour palettes, and a rugged magnesium alloy housing ensure reliable use in all environments. The intuitive controls are symmetrically placed for both left- and right-handed operation, while its ultra-compact form factor makes it ideal for one-handed use and travel.
Stream Vision 2 App Integration
Connect the Axion XG35 to the Stream Vision 2 mobile app via dual-band Wi-Fi. Stream real-time footage, update firmware, control digital functions remotely, and store images and videos to your device or cloud — all from your smartphone or tablet.
Key Features
- 640x480 thermal sensor with 12μm pixel pitch for detailed heat detection
- NETD <20mK sensitivity for high image clarity in challenging conditions
- Detection range up to 1750 metres
- Variable digital zoom: 2.5x to 20x
- AMOLED display with 640x400 resolution
- Compact design (under 300g without battery) for pocket-sized portability
- Magnesium alloy housing for durability and heat dispersion
- Built-in photo and video recording with 64GB memory
- 8 colour palettes for different tasks and preferences
- 3-level signal amplification for enhanced target visibility
- Powered by APS 3 rechargeable battery with up to 7 hours of use
- IPX7 waterproof rated for all-weather performance
Technical Specifications
| Sensor Type | Uncooled microbolometer |
| Sensor Resolution | 640x480 pixels |
| Pixel Pitch | 12μm |
| NETD | <20mK |
| Frame Rate | 50 Hz |
| Lens | 35mm f/1.0 germanium |
| Detection Range | Up to 1750m (deer-sized object) |
| Magnification | 2.5x to 20x digital zoom |
| Field of View | 21.9m x 13.7m @100m / 12.5° angular |
| Minimum Focus Distance | 5m |
| Eye Relief | 14mm |
| Diopter Adjustment | +4 to -5 |
| Display Type | AMOLED |
| Display Resolution | 640x400 pixels |
| Video/Photo Resolution | 960x600 |
| Video/Photo Format | .mp4 / .jpg |
| Internal Memory | 64GB |
| Battery Type | APS 3 Li-ion rechargeable battery |
| Battery Capacity | 3200mAh |
| Max Runtime at 22°C | Up to 7 hours |
| Charging Interface | USB Type-C (5V / 9V supported) |
| Wi-Fi Frequency | 2.4GHz / 5GHz |
| Wi-Fi Standard | IEEE 802.11 b/g/n/ac |
| Operating Temperature Range | -25°C to +40°C |
| Waterproof Rating | IPX7 |
| Dimensions | 146 × 49 × 71 mm |
| Weight (with battery) | 350g |
| Mounting Interface | 1/4" socket |
What’s in the Box
- Pulsar Axion Compact XG35 Thermal Monocular
- APS 3 Rechargeable Battery Pack
- Charging Station
- USB-C Cable
- Carry Case
- Lens Cleaning Cloth
- User Manual
| Manufacturer | Pulsar |
|---|
3 Years Limited Warranty
1 Year Battery Warranty
