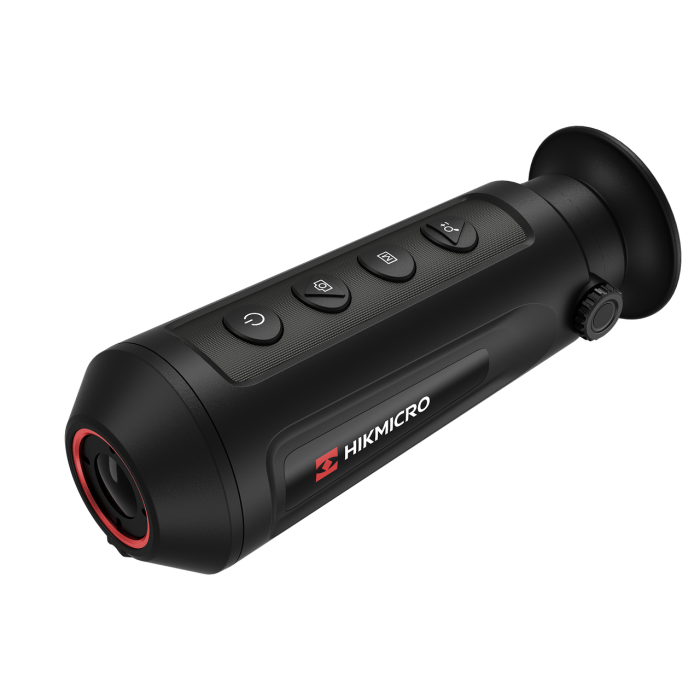

HIKMICRO Lynx Pro LH15 Thermal Monocular

The HIKMICRO Lynx Pro LH15 Thermal Monocular is a compact, high-sensitivity handheld thermal imaging device designed for reliable heat detection in low-visibility and no-light environments. By combining a responsive thermal sensor, wide field of view, and extended battery life, it delivers dependable thermal performance in a lightweight and portable form.

Manufactured by HIKMICRO, the Lynx Pro LH15 is well suited for outdoor observation, patrol tasks, search and rescue operations, navigation, and general thermal scanning where clarity, mobility, and ease of use are essential.

Thermal Imaging Performance and Detection Capability

The Lynx Pro LH15 is equipped with a 384 × 288 VOx uncooled thermal sensor featuring a 12 µm pixel pitch and a NETD rating of less than 35 mK. This high-sensitivity sensor enables clear thermal contrast and reliable target detection, even in environments with minimal temperature differences.

A 15 mm F1.0 lens provides a wide field of view for effective scanning and situational awareness. Thermal detection reaches approximately 700 metres, while a base optical magnification of 1.47×, combined with digital zoom up to 8× (11.76× total), allows flexible observation across short- to mid-range distances.

Display and Viewing Experience

Thermal imagery is displayed on a 0.4-inch LCOS screen with a resolution of 1280 × 960, delivering clear image detail and smooth rendering during handheld use. Advanced image processing technologies, including Adaptive AGC, DDE, and 3D DNR, help enhance edge definition and reduce image noise in challenging conditions.

Four selectable thermal colour palettes are available to adapt to different environments and viewing preferences, including White Hot, Black Hot, Red Hot, and Fusion modes.

Recording, Connectivity, and Smart Functions

The Lynx Pro LH15 supports both photo capture and video recording, allowing thermal images and footage to be stored directly on the device for later review.

Built-in Wi-Fi hotspot connectivity enables real-time streaming, device control, and file transfer through a compatible mobile application. Users can adjust zoom levels, manage recordings, and review captured content directly from a connected smartphone or tablet.

Power System and Portable Design

The monocular is powered by a built-in rechargeable lithium battery, providing up to approximately 7.5 hours of operating time on a single charge. This supports extended use without frequent recharging.

Weighing approximately 310 g, the Lynx Pro LH15 features a compact and ergonomic design that fits comfortably in the hand, making it easy to carry and operate during extended observation sessions.

Rugged Construction and Environmental Protection

Designed for outdoor use, the Lynx Pro LH15 features an IP67-rated housing, offering protection against dust, heavy rain, and temporary water immersion. The device is built to operate reliably across a wide temperature range, supporting use in varied environmental conditions.

Technical Specifications

Thermal Module

• Sensor Type: VOx uncooled focal plane array
• Resolution: 384 × 288
• Pixel Pitch: 12 µm
• NETD: < 35 mK (@25 °C, F1.0)
• Lens: 15 mm F1.0
• Detection Range: Approx. 700 m
• Optical Magnification: 1.47×
• Digital Zoom: 1×, 2×, 4×, 8×
• Field of View: 17.5° × 13.1°

Display & Imaging

• Display Type: LCOS
• Display Size: 0.4″
• Resolution: 1280 × 960
• Colour Palettes: White Hot, Black Hot, Red Hot, Fusion

System & Connectivity

• Photo Capture: Yes
• Video Recording: Yes
• Wi-Fi: Yes (hotspot mode)

Power & Physical

• Battery Type: Built-in rechargeable lithium battery
• Operating Time: Up to 7.5 hours
• Protection Rating: IP67
• Operating Temperature: –20 °C to +55 °C
• Dimensions: 158.3 × 61 × 57 mm
• Weight: 310 g

The HIKMICRO Lynx Pro LH15 Thermal Monocular delivers a balanced combination of high-sensitivity thermal imaging, compact portability, and rugged durability, making it a reliable solution for users requiring effective thermal observation in demanding environments.
