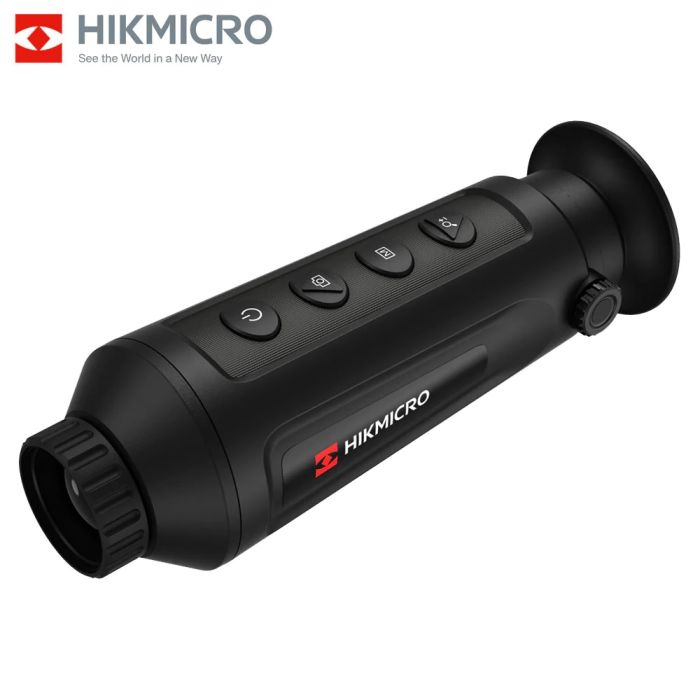

HIKMICRO Lynx Pro LH25 Thermal Monocular

The HIKMICRO Lynx Pro LH25 Thermal Monocular is a high-performance handheld thermal imaging device designed for mid- to long-range heat detection in low-visibility and no-light environments. Featuring a sensitive thermal sensor, longer focal length lens, and a high-resolution display, it delivers clear thermal imagery while maintaining a compact and portable form factor.

Manufactured by HIKMICRO, the Lynx Pro LH25 is well suited for patrol use, search and rescue operations, outdoor exploration, wildlife observation, and general thermal scanning where extended detection distance is required.

Thermal Imaging Performance and Detection Capability

The Lynx Pro LH25 is equipped with a 384 × 288 VOx uncooled thermal sensor featuring a 12 µm pixel pitch and a NETD rating of less than 35 mK. This high-sensitivity sensor enables reliable thermal contrast and clear target separation, even when temperature differences are minimal.

A 25 mm F1.0 lens provides increased base magnification compared to shorter focal length models, extending detection capability while retaining a usable field of view. Thermal detection reaches up to approximately 1180 metres, making the LH25 effective for mid- to long-range observation. A base optical magnification of 2.45×, supported by digital zoom up to 8× (19.6× total), allows flexible viewing across a wide range of distances.

Display and Viewing Experience

Thermal imagery is displayed on a 0.4-inch LCOS screen with a resolution of 1280 × 960, delivering sharp image detail and smooth rendering during handheld use.

Multiple thermal colour palettes are available to adapt to different environments and viewing preferences, including White Hot, Black Hot, Red Hot, and Fusion modes.

Recording, Connectivity, and Smart Functions

The Lynx Pro LH25 supports both photo capture and video recording, allowing thermal images and footage to be stored directly on the device for later review.

Built-in Wi-Fi hotspot connectivity enables real-time image sharing, device control, and file transfer through a compatible mobile application. Users can manage zoom levels, recording functions, and image review directly from a connected smartphone or tablet.

Power System and Rugged Design

The monocular is powered by a built-in rechargeable lithium battery, providing up to approximately 7.5 hours of operating time on a single charge. This supports extended field use without frequent recharging.

Designed for outdoor reliability, the Lynx Pro LH25 features an IP67-rated housing, offering protection against dust, heavy rain, and temporary water immersion.

Technical Specifications

Thermal Module

• Sensor Type: VOx uncooled focal plane array
• Resolution: 384 × 288
• Pixel Pitch: 12 µm
• Spectral Range: 8–14 µm
• NETD: < 35 mK (@25 °C, F1.0)
• Lens: 25 mm F1.0
• Detection Range: Up to 1180 m
• Optical Magnification: 2.45×
• Digital Zoom: 1×, 2×, 4×, 8×
• Field of View: 10.5° × 7.9°

Display & Imaging

• Display Type: LCOS
• Display Size: 0.4″
• Resolution: 1280 × 960
• Colour Palettes: White Hot, Black Hot, Red Hot, Fusion

System & Connectivity

• Photo Capture: Yes
• Video Recording: Yes
• Wi-Fi: Yes (hotspot mode)

Power & Physical

• Battery Type: Built-in rechargeable lithium battery
• Operating Time: Up to 7.5 hours
• Protection Rating: IP67

The HIKMICRO Lynx Pro LH25 Thermal Monocular delivers extended detection capability, high-sensitivity thermal imaging, and rugged portability, making it a dependable solution for users who require long-range thermal observation in demanding outdoor environments.
