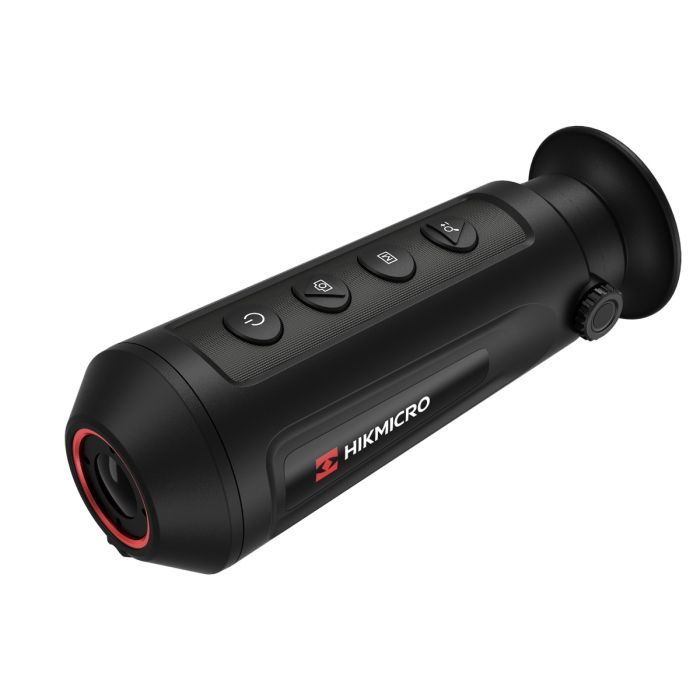

HIKMICRO Lynx Pro LE15S Thermal Imaging Monocular

The HIKMICRO Lynx Pro LE15S Thermal Imaging Monocular is a compact, lightweight handheld thermal device designed for reliable heat detection in low-visibility environments. Combining a sensitive thermal sensor, wide field of view, and long battery life, it delivers dependable thermal imaging performance in a highly portable form factor.

Manufactured by HIKMICRO, the Lynx Pro LE15S is well suited for users who require consistent thermal observation during outdoor exploration, monitoring tasks, and general night-time use.

Thermal Imaging Performance and Detection Capability

The Lynx Pro LE15S is equipped with a 256 × 192 VOx uncooled thermal sensor featuring a 12 µm pixel pitch and NETD < 35 mK. This allows clear thermal contrast and dependable heat detection even in complete darkness and challenging environmental conditions.

A 15 mm F1.0 lens provides a wide field of view that supports effective scanning and strong situational awareness. The device offers a detection range of up to approximately 600 metres for a 1.7-metre target, making it ideal for short- to mid-range thermal observation.

Flexible Magnification and Viewing Range

The Lynx Pro LE15S features a base optical magnification of 1.42×, supported by digital zoom levels of 1×, 2×, 4×, and 8×. This flexibility allows users to switch easily between wide-area scanning and closer inspection of detected heat sources.

Display and Viewing Experience

Thermal imagery is displayed on a 720 × 540 LCOS screen, delivering clear and comfortable image presentation in a compact eyepiece design. Multiple colour palettes allow users to adapt the image display to different environments and personal viewing preferences.

Available colour palettes include White Hot, Black Hot, Red Hot, and Fusion. Flat Field Correction (FFC) modes—Auto, Manual, and External—help maintain consistent image quality as ambient temperatures change.

Smart Functions and Connectivity

The Lynx Pro LE15S includes essential smart features such as hot spot detection and a standby mode to conserve power during periods of inactivity.

Built-in Wi-Fi connectivity enables wireless image sharing and device control via a compatible mobile app, allowing users to adjust zoom levels and manage video functions remotely.

Portable Design and Power System

The device is powered by a built-in rechargeable lithium battery, providing up to 8 hours of continuous operation. Weighing approximately 280 grams, the Lynx Pro LE15S is comfortable to hold and easy to carry, making it ideal for users who prioritise portability and ease of use.

Rugged Construction for Outdoor Use

Designed for real-world outdoor conditions, the Lynx Pro LE15S features an IP67 protection rating, offering resistance to dust, heavy rain, and temporary water immersion. Its durable housing ensures reliable operation across a wide range of environments.

Technical Specifications

Thermal Module

• Sensor Type: VOx uncooled focal plane array
• Resolution: 256 × 192
• Pixel Pitch: 12 µm
• Spectral Range: 8–14 µm
• NETD: < 35 mK (@25 °C, F1.0)
• Lens: 15 mm F1.0
• Detection Range: Up to 600 m (1.7 m target)
• Optical Magnification: 1.42×
• Digital Zoom: 1×, 2×, 4×, 8×
• Field of View: 11.69° × 8.78°

Display & Imaging

• Display Type: LCOS
• Resolution: 720 × 540
• Colour Palettes: White Hot, Black Hot, Red Hot, Fusion
• FFC Modes: Auto, Manual, External

System & Power

• Battery Type: Built-in rechargeable lithium battery
• Operating Time: Up to 8 hours
• Wi-Fi: Yes

Physical & Environmental

• Weight: Approx. 280 g
• Protection Rating: IP67

The HIKMICRO Lynx Pro LE15S Thermal Imaging Monocular is an excellent choice for users seeking a lightweight, easy-to-use thermal device with wide field coverage, solid detection capability, and long battery life in a compact design.
