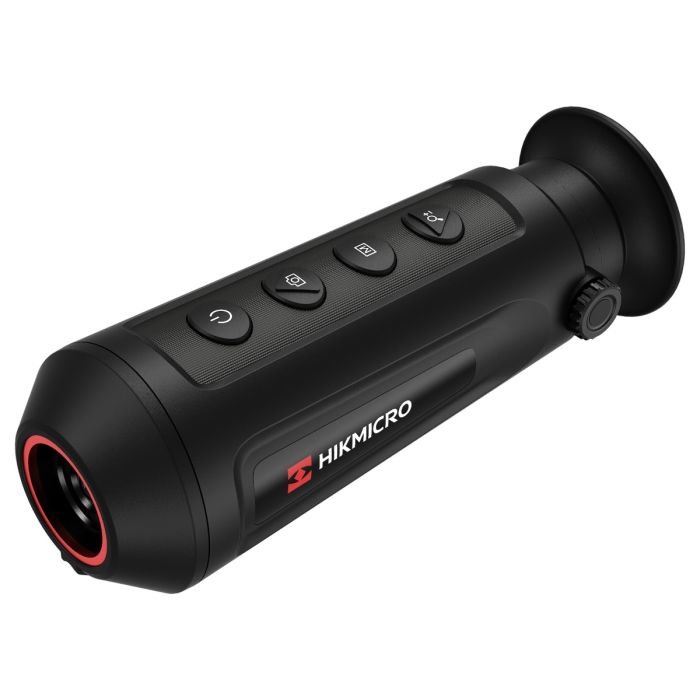

HIKMICRO Lynx LC06 Handheld Thermal Imaging Monocular

The HIKMICRO Lynx LC06 Thermal Imaging Monocular is an ultra-compact handheld thermal device designed for short- to mid-range thermal detection in low-visibility environments. Despite its small and lightweight form factor, it delivers dependable thermal performance, making it ideal for scanning, close-range observation, and situational awareness during outdoor use.

Manufactured by HIKMICRO, the Lynx LC06 combines a sensitive thermal sensor, onboard recording, and wireless connectivity in a highly portable design suited to users who prioritise simplicity and mobility.

Compact Thermal Imaging Performance

The Lynx LC06 is equipped with a 6 mm thermal lens and a VOx uncooled thermal sensor featuring a 17 µm pixel pitch and NETD of 35 mK. This configuration delivers clear thermal contrast for its class and supports confident identification of medium-sized animals such as sheep or goats at distances of up to approximately 250 metres.

Thermal detection extends to around 500–600 metres depending on environmental conditions, making the LC06 well suited for close-range scanning and wide-area situational awareness.

Image Display, Palettes, and Calibration

Thermal imagery is presented with strong contrast and clarity, supported by multiple selectable colour palettes that help distinguish heat signatures across different environments. Available palettes include White Hot, Black Hot, Red Hot, and enhanced alternative options.

The Lynx LC06 also features adjustable Flat Field Correction (FFC) modes to maintain image quality as ambient temperatures change. Auto Mode performs calibration automatically, Manual Mode allows user-initiated calibration via the mode button, and Background Calibration uses the lens cap for stable image correction.

Recording, Storage, and Wireless Connectivity

The device supports both snapshot capture and video recording, allowing users to document observations directly from the monocular. Captured images and videos are stored on the built-in 8 GB internal memory, eliminating the need for external storage.

Built-in Wi-Fi hotspot functionality enables real-time image sharing and file transfer via a compatible mobile app. Users can also control digital zoom and recording functions remotely from their mobile device.

Power Management and Outdoor Durability

The Lynx LC06 includes a sleep mode that helps conserve battery power and minimise light emission during dark conditions, making it particularly useful for discreet operation in low-light environments.

Its IP67-rated housing provides protection against dust, heavy rain, and temporary water immersion, ensuring reliable operation in outdoor and challenging conditions despite its compact size.

Key Specifications Overview

Thermal Imaging

• Sensor Type: VOx uncooled focal plane array
• Pixel Pitch: 17 µm
• NETD: 35 mK
• Lens: 6 mm
• Detection Range: Up to 500–600 m (environment dependent)
• Identification Range: Up to ~250 m (medium-sized targets)

Imaging & Functions

• Colour Palettes: Multiple selectable palettes
• FFC Modes: Auto, Manual, Background
• Snapshot Capture: Yes
• Video Recording: Yes

Connectivity & Storage

• Wi-Fi: Yes (hotspot mode)
• Internal Storage: 8 GB

Physical & Environmental

• Protection Rating: IP67
• Sleep Mode: Yes

The HIKMICRO Lynx LC06 Handheld Thermal Imaging Monocular is a practical choice for users seeking a highly portable thermal device that delivers reliable close-range detection, simple operation, and durable all-weather performance.
