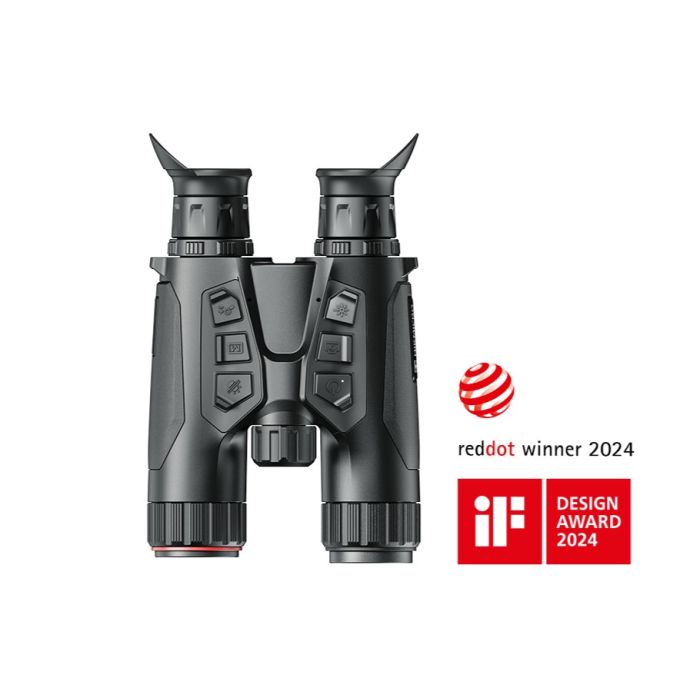

HIKMICRO Habrok HE25L 4K Thermal Fusion Binoculars

The HIKMICRO Habrok HE25L 4K Thermal Fusion Binoculars are advanced multi-spectrum binoculars designed for detailed observation across day, night, and low-visibility environments. By combining ultra-high-definition optical imaging, thermal detection, infrared night capability, and an integrated laser rangefinder, the Habrok HE25L delivers comprehensive situational awareness in a single ergonomic binocular platform.

Developed by HIKMICRO, the Habrok HE25L integrates 4K optical imaging and thermal fusion technology to support wildlife observation, ecological research, and outdoor exploration in varied environmental conditions.

4K Optical Imaging for Day and Low-Light Observation

The Habrok HE25L features a 3840 × 2160 UHD 4K CMOS optical sensor, delivering exceptionally detailed imagery with accurate colour reproduction during daylight and twilight conditions. An optical magnification range of 5.5× to 22× allows users to observe distant subjects with fine visual detail while maintaining image clarity.

Multiple optical viewing modes enable quick adaptation to changing light conditions, supporting consistent observation from dawn through dusk.

Thermal Imaging and Fusion Capability

For night-time and low-visibility conditions, the Habrok HE25L incorporates a 256 × 192 VOx uncooled thermal sensor with a 12 µm pixel pitch and NETD < 35 mK. This allows detection of subtle heat signatures even in rain, fog, or dense vegetation.

Thermal detection reaches up to approximately 1200 metres, while fusion imaging combines thermal and optical data to improve target recognition and environmental context.

Available image modes include White Hot, Black Hot, Red Hot, Fusion, Day Mode, and Black & White.

Display, Zoom, and Viewing Functions

All imagery is displayed on a 0.49-inch OLED screen with a full HD resolution of 1920 × 1080, delivering smooth rendering, fast response, and clear contrast. Digital zoom options of 1×, 2×, and 4× are supported, along with picture-in-picture (PIP) for detailed inspection without sacrificing situational awareness.

Integrated Laser Rangefinder, GPS, and Navigation Tools

The Habrok HE25L features an integrated Class 1 laser rangefinder capable of measuring distances up to 1000 metres with an accuracy of ±1 metre. Built-in GPS and a digital magnetic compass provide positional, directional, and elevation data, enhancing situational awareness during observation.

An integrated 850 nm infrared illuminator extends optical visibility up to 400 metres in complete darkness.

Recording, Storage, and Connectivity

The binoculars support photo and video recording, allowing observations to be captured directly to the built-in 64 GB internal memory. Digital video output and wireless connectivity enable convenient data review, sharing, and archiving.

An automatic display-off function helps conserve battery power when the device is not actively in use.

Power System and Rugged Design

The Habrok HE25L is powered by a replaceable rechargeable Li-ion battery, delivering up to 8 hours of continuous operation with Wi-Fi hotspot disabled at 25 °C.

Weighing approximately 795 g, the binoculars feature a traditional binocular form factor with adjustable interpupillary distance for comfortable extended use. A magnesium alloy housing combined with an IP67 waterproof rating provides protection against dust, heavy rain, and temporary water immersion, ensuring reliable operation in harsh outdoor environments.

Technical Specifications

Imaging Sensors

• Optical Sensor: CMOS 4K
• Optical Resolution: 3840 × 2160
• Thermal Sensor: VOx uncooled focal plane array
• Thermal Resolution: 256 × 192
• Pixel Pitch: 12 µm
• NETD: < 35 mK

Optics & Detection

• Optical Magnification: 5.5× – 22×
• Thermal Magnification: 4.3× – 17.2×
• Digital Zoom: 1×, 2×, 4×
• Thermal Lens: 25 mm
• Optical Lens: 60 mm
• Thermal Detection Range: Up to 1200 m
• Optical IR Detection Range: Up to 400 m

Display & Output

• Display Type: OLED
• Display Size: 0.49″
• Resolution: 1920 × 1080
• Video Output: Digital

Laser & Navigation

• Laser Rangefinder: Up to 1000 m
• Accuracy: ±1 m
• Laser Class: Class 1
• GPS: Yes
• Digital Magnetic Compass: Yes

System & Power

• Internal Storage: 64 GB
• Battery Type: Rechargeable Li-ion (replaceable)
• Operating Time: Up to 8 hours
• IR Illuminator: 850 nm

Environmental

• Protection Rating: IP67
• Operating Temperature: –30 °C to +55 °C

The HIKMICRO Habrok HE25L 4K Thermal Fusion Binoculars deliver a powerful combination of high-resolution optical imaging, thermal detection, precise rangefinding, and rugged construction, making them an exceptional choice for users who require advanced observation capability across all lighting and weather conditions.
