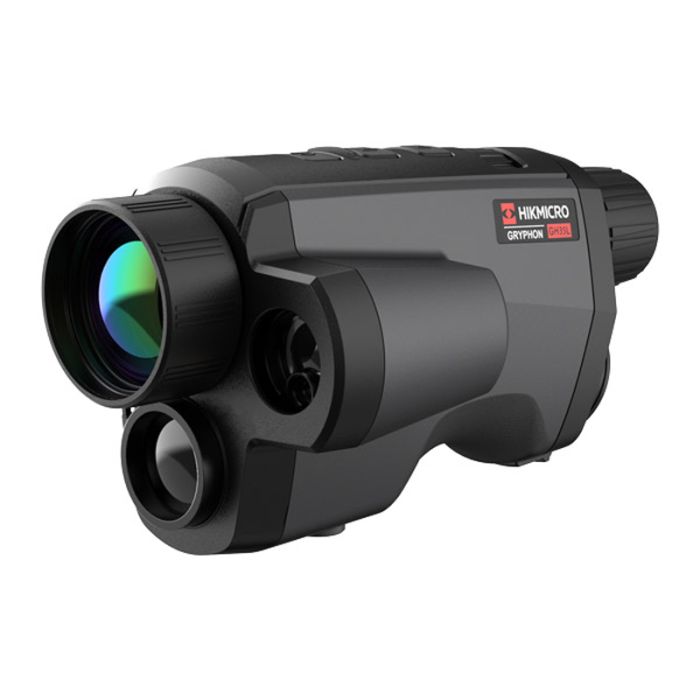

HikMicro Gryphon GQ35L LRF Thermal Night Vision Monocular
The HIKMICRO Gryphon GQ35L fusion thermal monocular is a versatile imaging device that combines visible and thermal imaging technologies to provide clear visuals in various environmental conditions. Equipped with a custom 640 × 512px 12μm sensor, a 35mm lens, a laser rangefinder, and an OLED display, this monocular offers exceptional performance. Here are its key features and technical specifications:
Key Features:
Premium Image Quality: Utilizes a state-of-the-art 640px sensor from HIKMICRO, delivering crisp images even in adverse conditions.
Laser Range Finder: Features a built-in Laser Range Finder (LRF) with accuracy within 1 meter up to 600 meters.
Thermal Fusion Technology: Combines night vision and thermal imaging in a single unit for enhanced detail in every frame.
Six Color Pallets: Offers a selection of six color palettes, including Image Fusion, for improved visualization.
T-Vision App Integration: Integrated with the T-Vision app over Wi-Fi for expanded functionality and control.
Technical Specifications:
Thermal Module:
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: < 35 mK (@25°C, F# = 1.0)
Lens (Focal Length): 35 mm
Detection Range: Up to 1800 meters
Focus Mode: Manual
Field of View: 10.97° × 8.82° (H × V)
Min. Focusing Distance: 3 m
Aperture: F1.0
Magnification: 2
Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×
Optical Module:
Image Sensor: 1/2” Progressive Scan CMOS
Focal Length: 22 mm
Wavelength: 400 nm to 1000 nm
Max. Resolution: 1920 × 1080
Min. Illumination: 0.001 Lux @ F1.0
Image Display:
Frame Frequency: 50 Hz
Display: 0.39 inch, OLED, 1024 × 768
Image Mode: White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Smart Functions:
Hot Spot: Yes
Hot Track: Yes
Distance Measurement: Yes
Standby Mode: Yes
System:
Record Video: Yes
Capture Snapshot: Yes
Built-in Memory: 16 GB
Power Supply:
Battery Type: One 18650 battery
Battery Operating Time: 4.5 hours
Power: Removable Battery
General:
Protection Level: IP67
Dimension: 87.2 mm × 73.3 mm × 167.8 mm
Weight: 510 g
Working Temperature: -30 to 55°C
The HIKMICRO Gryphon GQ35L offers outstanding thermal and optical imaging capabilities, making it suitable for a wide range of applications, including outdoor activities, law enforcement, and more. Its fusion technology and laser rangefinder provide enhanced functionality for various scenarios.
