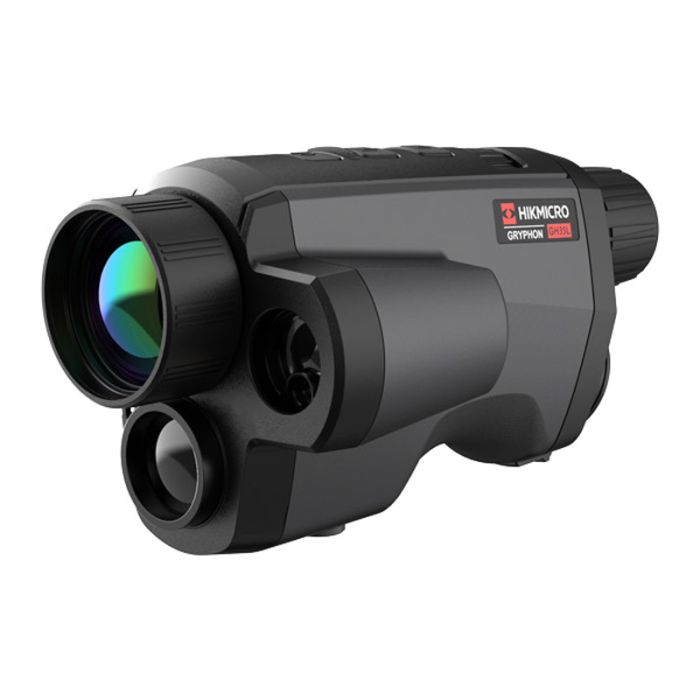

HIKMICRO Gryphon GH35L Fusion Thermal Monocular

The HIKMICRO Gryphon GH35L Fusion Thermal Monocular is a versatile imaging device designed to deliver reliable performance across a wide range of environments. By combining thermal imaging, visible light imaging, and a built-in laser rangefinder, the GH35L provides clear, detailed views in complete darkness, low visibility, and complex outdoor conditions.

High-Sensitivity Thermal Imaging with Long Detection Range

At the core of the Gryphon GH35L is a high-sensitivity 384 × 288 thermal sensor with a 12μm pixel pitch, paired with a 35mm F1.0 lens. This configuration enables long-distance heat detection of up to approximately 1800 metres while maintaining strong contrast and detail, even in fog, rain, smoke, or dense vegetation. A NETD rating of less than 35mK ensures accurate thermal separation in challenging temperature conditions.

Fusion Imaging and Multiple Viewing Modes

Fusion imaging technology allows thermal and visible imagery to be combined into a single enhanced view, improving detail recognition and object outlines compared to standard thermal-only viewing. Multiple viewing modes and colour palettes are available, including White Hot, Black Hot, Red Hot, Visible Light, and Fusion modes, allowing users to adapt the display to changing environments and personal preferences.

Integrated Laser Rangefinder for Precise Distance Measurement

The built-in laser rangefinder provides accurate distance measurement up to 600 metres with ±1 metre accuracy. This feature enhances situational awareness and target assessment, making the GH35L well suited for professional and advanced outdoor observation applications.

Recording, Connectivity, and Smart Features

The GH35L supports built-in video recording and image capture, with 16GB of internal storage for saving footage and still images. Integrated Wi-Fi enables seamless connection to the HIKMICRO T-Vision app, allowing live viewing, file transfer, and device control from a compatible mobile device.

Rugged Design for Demanding Conditions

Designed for real-world use, the Gryphon GH35L features an IP67-rated housing that protects against dust, water, and harsh weather conditions. Power is supplied by a removable 18650 battery, delivering approximately 5 hours of continuous operation. The ergonomic design and long eye relief ensure comfortable use during extended observation sessions.

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Array
• Resolution: 384 × 288
• Pixel Pitch: 12 μm
• Frame Rate: 50 Hz
• Spectral Range: 8–14 μm
• NETD: <35 mK (@25°C, F1.0)
• Lens: 35 mm F1.0
• Detection Range: Up to approx. 1800 m
• Field of View: 7.5° × 5.7°
• Minimum Focus Distance: 3 m
• Optical Magnification: 3.35×
• Digital Zoom: 1× / 2× / 4× / 8×

Visible Light Module

• Sensor: 1/2″ Progressive Scan CMOS
• Resolution: 1920 × 1080
• Lens: 22 mm
• Minimum Illumination: 0.001 Lux @ F1.0

Display

• Display Type: OLED
• Size: 0.39 inch
• Resolution: 1024 × 768
• Frame Rate: 50 Hz

Laser Rangefinder

• Laser Class: Class 1
• Wavelength: 905 nm
• Maximum Range: Up to 600 m
• Accuracy: ±1 m

System Functions

• Video Recording: Yes
• Image Capture: Yes
• Built-in Memory: 16 GB
• Wi-Fi: Yes
• App Support: HIKMICRO T-Vision

Power & Physical

• Battery Type: 1 × 18650 (removable)
• Operating Time: Approx. 5 hours
• Ingress Protection: IP67
• Operating Temperature: −30°C to +55°C
• Dimensions: 87.2 × 73.3 × 167.8 mm
• Weight: Approx. 510 g
• Eye Relief: 19.5 mm

The HIKMICRO Gryphon GH35L Fusion Thermal Monocular is a powerful and adaptable solution for users who require precise thermal detection, accurate ranging, and robust performance in demanding low-light and outdoor environments.
