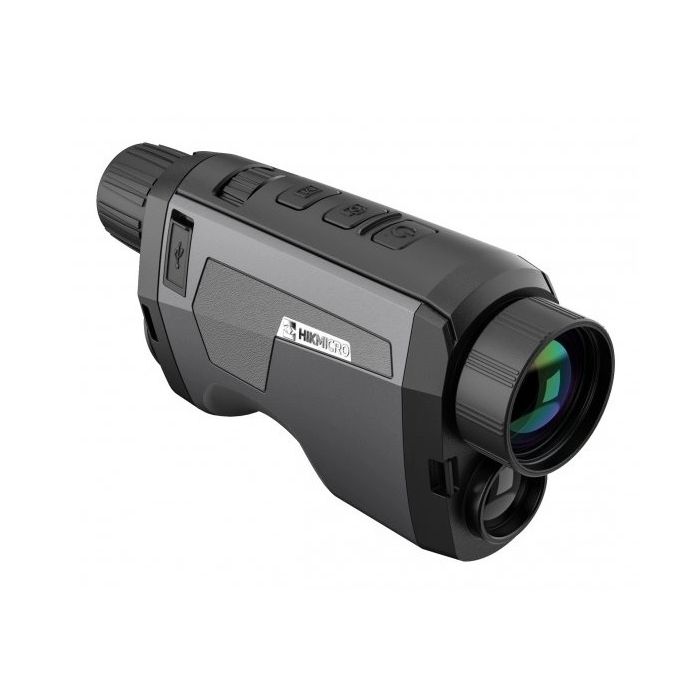

HIKMICRO Gryphon GH25 Fusion Thermal Imaging Monocular

The HIKMICRO Gryphon GH25 Fusion Thermal Imaging Monocular is a compact, multi-spectrum handheld device designed for reliable observation across day, night, and adverse weather conditions. By combining thermal imaging with visible-light optics, it delivers enhanced situational awareness in environments where standard vision is limited.

Developed by HIKMICRO, the Gryphon GH25 integrates fusion imaging technology, a responsive thermal sensor, and an intuitive control system in a rugged, portable design suitable for outdoor and professional use.

Fusion Imaging and Thermal Performance

The Gryphon GH25 features bi-spectrum image fusion, capturing both thermal and visible light to support observation across daylight, low-light, and complete darkness. Fusion mode combines thermal data with optical detail, improving object outlines and overall scene interpretation in complex environments.

At its core is a 384 × 288 VOx uncooled thermal sensor with a 12 µm pixel pitch and NETD < 35 mK, enabling clear thermal contrast and reliable target detection even when temperature differences are minimal. This sensitivity supports effective observation in fog, rain, smoke, and low-contrast conditions.

Optical Module and Display

In addition to thermal imaging, the GH25 incorporates a 1920 × 1080 low-illumination optical sensor, allowing detailed visual observation during daylight and twilight conditions.

All imagery is displayed on a 0.39-inch OLED screen with 1024 × 768 resolution, delivering sharp visuals, smooth rendering, and reduced eye strain during extended handheld use.

Available imaging modes include Thermal, Optical, and Fusion, allowing quick adaptation to changing observation requirements.

User Interface and Recording Functions

The Gryphon GH25 features an intuitive control wheel that enables precise menu navigation and zoom adjustment with one-handed operation. This design supports quick setting changes in the field without interrupting observation.

The device supports video recording and snapshot capture, with media stored on the built-in 16 GB internal memory for convenient review and transfer.

Power System and Durability

The GH25 is powered by a replaceable 18650 battery, delivering up to 5 hours of operating time per battery. The removable battery system allows extended observation when spare batteries are available.

Its IP67-rated housing provides protection against dust, heavy rain, and temporary water immersion. Designed for demanding outdoor use, the monocular operates reliably across a wide temperature range.

Technical Specifications

Thermal Module

• Sensor Type: VOx uncooled focal plane array
• Resolution: 384 × 288
• Pixel Pitch: 12 µm
• NETD: < 35 mK

Optical Module

• Sensor Resolution: 1920 × 1080
• Sensor Type: Low-illumination CMOS

Display & Imaging

• Display Type: OLED
• Display Size: 0.39″
• Resolution: 1024 × 768
• Imaging Modes: Thermal, Optical, Fusion

System & Storage

• Video Recording: Yes
• Snapshot Capture: Yes
• Internal Storage: 16 GB

Power & Physical

• Battery Type: 18650 (replaceable)
• Operating Time: Up to 5 hours
• Protection Rating: IP67
• Operating Temperature: –30 °C to +55 °C
• Dimensions: 161.5 × 87.2 × 51.2 mm
• Weight: 480 g
• Eye Relief: 19.5 mm

The HIKMICRO Gryphon GH25 Fusion Thermal Imaging Monocular is a practical solution for users seeking compact fusion imaging, dependable thermal performance, and durable construction for real-world outdoor observation.
