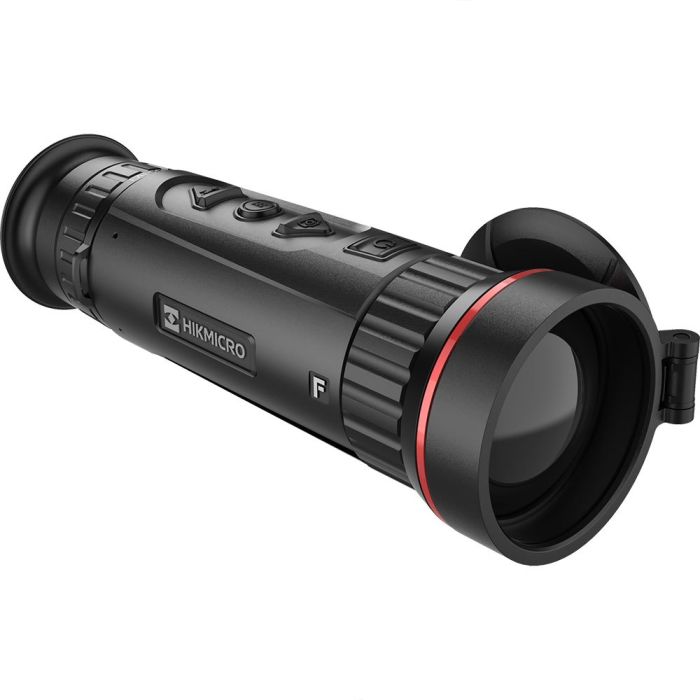

HIKMICRO Falcon FQ50 Handheld Thermal Imaging Monocular

The HIKMICRO Falcon FQ50 Handheld Thermal Imaging Monocular is a high-performance thermal device designed for long-range heat detection and detailed observation in demanding environments. Built around an advanced high-sensitivity thermal core, it delivers consistent image clarity in poor weather, low-contrast scenes, and complete darkness.

Manufactured by HIKMICRO, the Falcon FQ50 combines a powerful thermal sensor, wide-aperture lens, and extended battery system within a compact and rugged magnesium housing, making it well suited for professional and serious outdoor use.

High-Sensitivity Thermal Performance and Long Detection Range

At the core of the Falcon FQ50 is a 640 × 512 VOx uncooled thermal sensor with a 12 µm pixel pitch and an exceptionally low NETD below 20 mK. This high sensitivity allows precise thermal separation and strong contrast, even in challenging temperature environments where differences are subtle.

Paired with a fast 50 mm F0.9 lens, the system achieves an impressive detection range of up to 2600 metres, making it ideal for long-distance thermal observation. Native optical magnification of 2.6× is supported by digital zoom up to 8×, providing a total magnification range of 2.6× to 10.4×.

A picture-in-picture function enables detailed inspection of distant heat sources while maintaining broader situational awareness.

Imaging Modes and Recording Functions

The Falcon FQ50 offers multiple thermal colour palettes to suit different environments and user preferences. Available display modes include White Hot, Black Hot, Red Hot, and Fusion, allowing flexible adaptation to changing observation conditions.

Integrated recording functionality allows users to capture both video and still images directly to the built-in 64 GB internal memory, providing ample storage for extended observation sessions and easy post-use review.

Wireless Connectivity and Power System

Built-in Wi-Fi enables wireless streaming and device control via compatible smartphones and tablets, allowing real-time viewing and convenient file management through a supported mobile app.

The Falcon FQ50 is powered by two rechargeable 18650 batteries, delivering up to approximately 7 hours of continuous operation. The interchangeable battery design supports extended field use with minimal downtime.

Rugged Construction and Environmental Protection

Housed in a durable magnesium alloy chassis with protective rubber armouring, the Falcon FQ50 is designed for stability and longevity during handheld use. An IP67 protection rating ensures resistance to dust, heavy rain, and temporary water immersion, making it suitable for harsh outdoor conditions.

Technical Specifications

Thermal Module

• Sensor Type: VOx uncooled focal plane array
• Resolution: 640 × 512
• Pixel Pitch: 12 µm
• Frame Rate: 50 Hz
• Spectral Range: 8–14 µm
• NETD: < 20 mK (@25 °C, F1.0)
• Lens: 50 mm F0.9
• Detection Range: Up to 2600 m
• Field of View: 8.75° × 7°
• Optical Magnification: 2.6×
• Digital Zoom: 1× / 2× / 4× / 8×

System & Storage

• Internal Storage: 64 GB
• Video Recording: Yes
• Snapshot Capture: Yes
• Wireless Connectivity: Wi-Fi

Power & Physical

• Battery Type: 18650 rechargeable (×2)
• Operating Time: Up to 7 hours
• Housing: Magnesium alloy with rubber armour
• Protection Rating: IP67

The HIKMICRO Falcon FQ50 Handheld Thermal Imaging Monocular is a powerful and dependable solution for users who require long-range detection, high thermal sensitivity, and rugged reliability in a compact handheld design.
