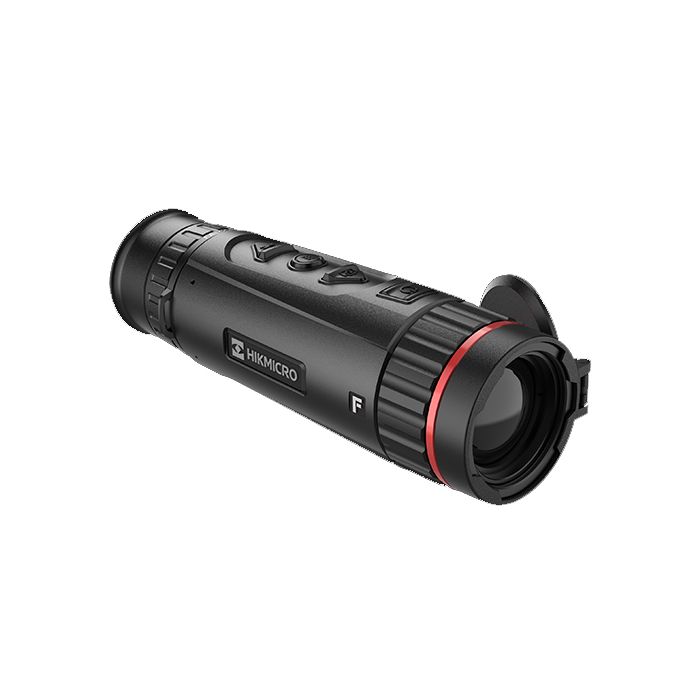

HIKMICRO Falcon FQ35 Handheld Thermal Imaging Monocular

The HIKMICRO Falcon FQ35 Thermal Imaging Monocular is a high-performance handheld thermal device designed for long-range heat detection and detailed observation in low-visibility environments. Built around a highly sensitive thermal sensor, it delivers strong image contrast and reliable detection even in challenging weather conditions.

Manufactured by HIKMICRO, the Falcon FQ35 combines advanced thermal performance, image enhancement features, and wireless connectivity in a compact and rugged handheld design suitable for demanding outdoor and professional use.

High-Sensitivity Thermal Imaging Performance

The Falcon FQ35 is equipped with a 640 × 512 VOx uncooled thermal sensor featuring a 12 µm pixel pitch and sub-20 mK NETD. This high sensor sensitivity enables excellent thermal separation, allowing fine heat differences to be detected even in fog, rain, or low-contrast environments.

With a thermal detection range of up to 1800 metres, the Falcon FQ35 is well suited for medium- to long-range thermal observation, delivering clear situational awareness across varied conditions.

Advanced Viewing Features and Image Control

To support precise observation, the Falcon FQ35 includes a picture-in-picture (PIP) mode, allowing users to magnify a selected area of the image while maintaining awareness of the surrounding scene. This is especially useful for identifying distant heat sources without losing overall context.

Multiple selectable thermal colour palettes are available, enabling users to optimise image presentation based on environmental conditions and personal viewing preference.

Recording and Wireless Connectivity

The Falcon FQ35 supports onboard video recording, allowing thermal footage to be captured directly on the device for later review or documentation.

Built-in Wi-Fi connectivity enables real-time streaming and file transfer to compatible smartphones or tablets, providing added flexibility for remote viewing, sharing, and device control.

Rugged and Portable Design

Designed for outdoor and professional environments, the Falcon FQ35 features a rugged housing built to withstand demanding conditions. Its compact handheld form factor ensures comfortable operation and portability during extended use in the field.

Key Specifications Overview

Thermal Module

• Sensor Type: VOx uncooled focal plane array
• Resolution: 640 × 512
• Pixel Pitch: 12 µm
• Spectral Range: 8–14 µm
• NETD: < 20 mK (sub-20 mK @25 °C)
• Detection Range: Up to 1800 m

Imaging & Functions

• Picture-in-Picture (PIP): Yes
• Colour Palettes: Multiple selectable palettes
• Video Recording: Yes
• Wi-Fi Connectivity: Yes

Physical

• Form Factor: Handheld
• Design: Rugged and portable

The HIKMICRO Falcon FQ35 Handheld Thermal Imaging Monocular is a dependable choice for users seeking high-resolution thermal performance, advanced viewing tools, and wireless connectivity in a durable, field-ready design.
