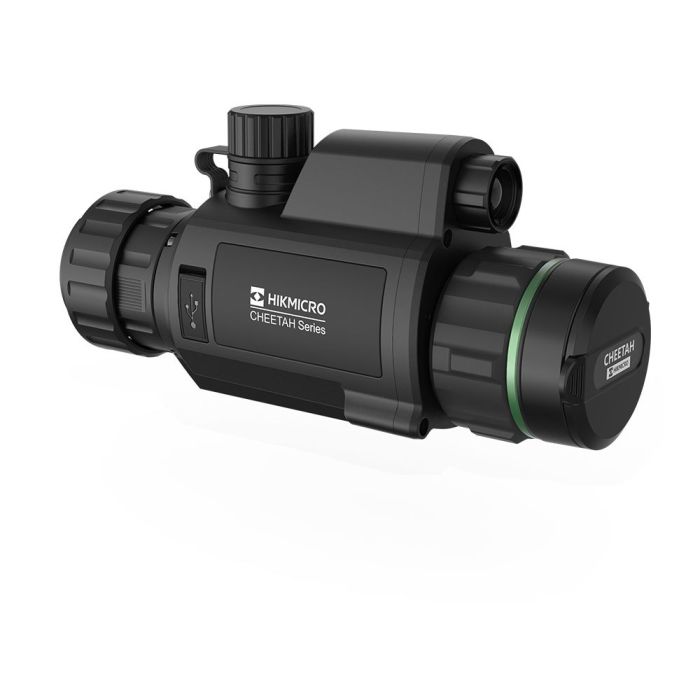

HIKMICRO Cheetah C32F-RN

The HIKMICRO Cheetah C32F-RN Digital Day & Night Vision Monocular is a high-definition optical imaging device designed for reliable observation across daylight, low-light, and complete darkness. By combining a high-resolution digital sensor, infrared night capability, onboard recording, and an integrated laser rangefinder, it delivers versatile performance for outdoor and professional observation.

Developed by HIKMICRO, the C32F-RN integrates modern digital night-vision technology in a compact, rugged housing suitable for extended field use.

High-Definition Digital Imaging Performance

At the core of the C32F-RN is a 2560 × 1440 high-definition digital sensor, providing sharp detail and clear contrast during daytime and low-light operation. Imagery is displayed on a 0.49-inch OLED screen with 1920 × 1080 resolution, delivering smooth visuals and accurate detail representation.

Multiple viewing modes allow rapid adaptation to changing environments, including Day, Night, Auto, and Defog modes. A built-in 940 nm infrared illuminator enhances visibility in complete darkness while maintaining a reduced visible signature.

Detection Capability and Integrated Laser Rangefinder

The Cheetah C32F-RN provides a digital detection range of up to 400 metres when the IR illuminator is enabled. An integrated Class 1 laser rangefinder enables accurate distance measurement up to 1000 metres with ±1 metre accuracy, improving spatial awareness and distance estimation during observation.

Recording, Storage, and Smart Functions

The device supports a wide range of onboard functions, including video recording, snapshot capture, audio recording, recoil-activation recording, hot track support, and standby mode for power management.

Captured images and videos are stored on the built-in 64 GB eMMC memory, allowing extended recording without the need for external storage devices. A reticle display and five configurable zeroing profiles support precise visual alignment where required.

Power System and Connectivity

The C32F-RN is powered by a replaceable and rechargeable Li-ion battery, delivering a minimum of 5.5 hours of operation at 25 °C with hotspot and IR functions disabled. Charging and external power are supported via USB-C (5V DC, 2A), with built-in overvoltage protection.

Wireless hotspot connectivity enables remote viewing, device control, and file transfer to compatible smart devices.

Rugged Construction and Environmental Protection

Designed for outdoor reliability, the Cheetah C32F-RN features an IP67-rated housing, providing protection against dust, heavy rain, and temporary water immersion. Its compact form factor and lightweight construction support comfortable handheld use in demanding environments.

Technical Specifications

Imaging & Optics

• Sensor Resolution: 2560 × 1440
• Frame Rate: 25 Hz
• Lens: 32 mm F1.2
• Minimum Focus Distance: 3 m
• Field of View: 9.9° × 7.5°
• Magnification: 1×

Display

• Display Type: OLED
• Display Size: 0.49″
• Resolution: 1920 × 1080
• Exit Pupil: 22 mm
• Eye Relief: 10 mm

Night Vision & Ranging

• IR Illuminator: 940 nm
• Detection Range (IR): Up to 400 m
• Laser Rangefinder: Up to 1000 m
• Measurement Accuracy: ±1 m
• Minimum Measuring Range: 10 m

Recording & Storage

• Video Recording Resolution: 1920 × 1440
• Snapshot Capture: Yes
• Audio Recording: Yes
• Recoil-Activation Recording: Yes
• Internal Storage: 64 GB eMMC

Power & Physical

• Battery Type: Rechargeable Li-ion (replaceable)
• Operating Time: ≥ 5.5 hours
• USB-C Power Input: 5V DC, 2A
• Protection Rating: IP67
• Operating Temperature: –30 °C to +55 °C
• Dimensions: 182.8 × 70 × 87.2 mm
• Weight: < 465 g (without eyepiece and battery)

The HIKMICRO Cheetah C32F-RN Digital Day & Night Vision Monocular is a comprehensive solution for users seeking high-definition digital imaging, integrated ranging capability, and robust recording features in a compact, field-ready design.
