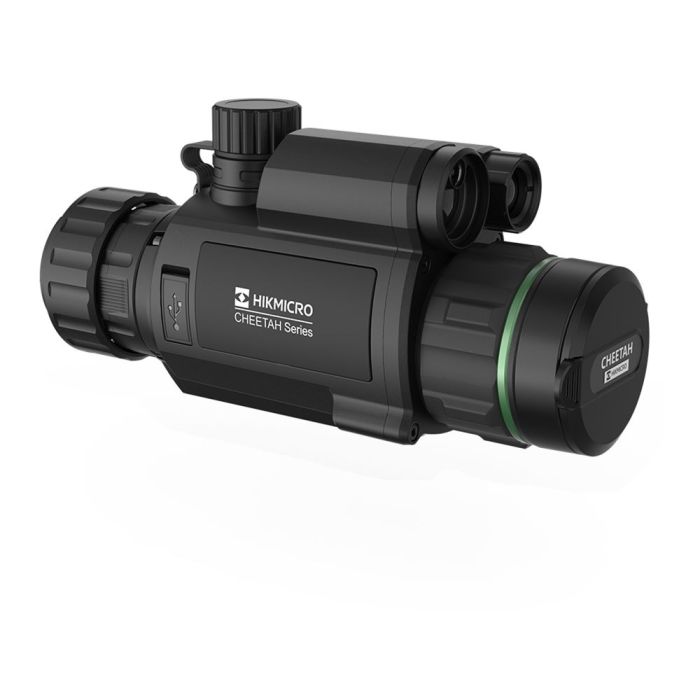

HIKMICRO Cheetah C32F-RL

The HIKMICRO Cheetah C32F-RL Digital Night Vision Monocular is a high-definition optical imaging device designed for reliable observation in both daylight and complete darkness. By combining a high-resolution digital sensor, integrated infrared illumination, onboard recording, and a built-in laser rangefinder, it delivers versatile performance across a wide range of lighting and environmental conditions.

Developed by HIKMICRO, the C32F-RL integrates modern digital night vision technology into a compact, rugged housing suitable for extended outdoor and field use.

High-Definition Digital Imaging Performance

The Cheetah C32F-RL is built around a 2560 × 1440 high-definition digital sensor, delivering sharp image detail and strong contrast in daylight, twilight, and low-light conditions. Imagery is displayed on a 0.49-inch OLED screen with a 1920 × 1080 resolution, providing clear visuals and smooth image rendering during extended viewing sessions.

Multiple viewing modes allow quick adaptation to changing environments, including Day, Night, Auto, and Defog modes. An integrated adjustable infrared emitter enhances visibility in complete darkness, supporting effective night-time observation.

Detection Capability and Laser Rangefinder

The device offers a digital detection range of up to 400 metres, making it suitable for mid-range observation in outdoor environments. A built-in laser rangefinder improves situational awareness by enabling accurate distance measurement up to 600 metres, helping users better assess and identify distant objects.

Recording, Storage, and Smart Functions

The Cheetah C32F-RL supports onboard video recording, snapshot capture, and audio recording, allowing users to document observations directly from the device. Recoil-activation recording is also supported, enabling automatic capture when movement is detected.

All recorded media is stored on the built-in 64 GB eMMC memory, providing ample capacity for extended recording sessions without the need for external storage.

Power System and Extended Operating Time

The monocular is powered by two replaceable and rechargeable 18650 batteries. Each battery provides up to 6 hours of operation, delivering a combined operating time of up to 12 hours. The interchangeable battery design supports long-duration use with minimal downtime in the field.

Durable Design for Outdoor Use

Designed for outdoor reliability, the Cheetah C32F-RL features a robust, weather-resistant housing suitable for extended use in varying environmental conditions. Its compact form factor ensures comfortable handheld operation while maintaining dependable build quality.

Key Specifications Overview

Imaging & Display

• Sensor Resolution: 2560 × 1440
• Display Type: OLED
• Display Size: 0.49″
• Display Resolution: 1920 × 1080
• Viewing Modes: Day, Night, Auto, Defog
• IR Emitter: Built-in, adjustable

Detection & Ranging

• Detection Range: Up to 400 m
• Laser Rangefinder: Yes
• LRF Measuring Range: Up to 600 m

Recording & Storage

• Video Recording: Yes
• Snapshot Capture: Yes
• Audio Recording: Yes
• Recoil-Activation Recording: Yes
• Internal Storage: 64 GB eMMC

Power

• Battery Type: 18650 rechargeable (×2, replaceable)
• Operating Time: Up to 12 hours total

The HIKMICRO Cheetah C32F-RL is an excellent choice for users seeking a powerful digital day-and-night vision monocular with integrated ranging, long battery life, and high-definition imaging in a compact, field-ready design.
