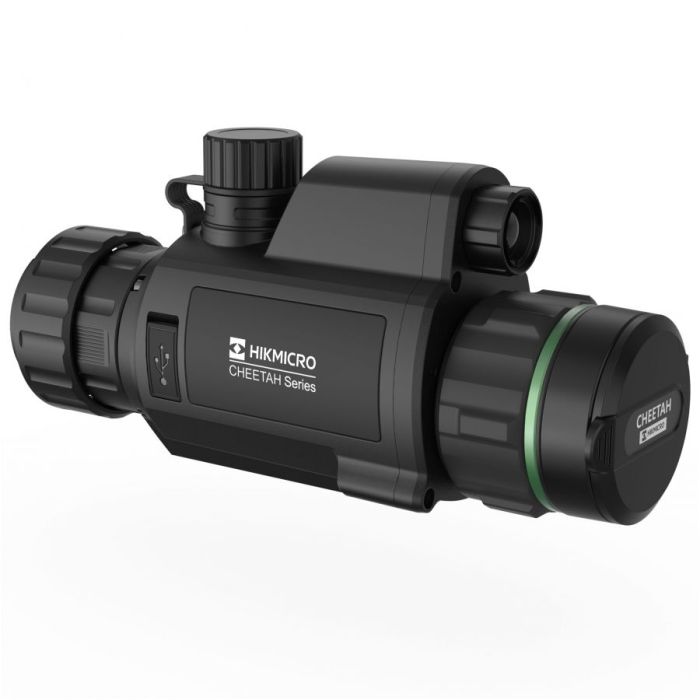

HIKMICRO Cheetah C32F-R

The HIKMICRO Cheetah C32F-R is a compact digital day and night vision imaging device designed for clear observation across varying light and environmental conditions. By combining a high-resolution digital sensor, integrated infrared illumination, and a precision laser rangefinder, it delivers dependable performance in daylight, low-light, and complete darkness.

Developed by HIKMICRO, the Cheetah C32F-R integrates advanced digital imaging technology, onboard recording features, and a rugged housing suitable for demanding outdoor and professional applications.

High-Resolution Digital Imaging Performance

The Cheetah C32F-R is built around a 2560 × 1440 high-definition digital sensor, delivering detailed image clarity during daytime and enhanced visibility at night when paired with the built-in infrared illuminator. A 32 mm F1.2 lens provides efficient light gathering and a balanced field of view for scanning and observation.

With 1× native magnification and a minimum focus distance of 3 metres, the device supports comfortable viewing across short to medium distances. When the IR illuminator is activated, the system delivers an effective detection range of up to approximately 400 metres in complete darkness.

Display and Viewing Modes

Imagery is displayed on a 0.49-inch OLED screen with a full HD resolution of 1920 × 1080, providing sharp visuals and smooth image transitions. Multiple viewing modes allow the device to adapt to changing environmental conditions, including Day, Night, Auto, and Defog modes.

An exit pupil of 22 mm and eye relief of 10 mm support comfortable viewing during extended observation sessions.

Integrated Laser Rangefinder and Smart Functions

The Cheetah C32F-R features an integrated laser rangefinder (LRF), enabling accurate distance measurement from 10 to 1000 metres with an accuracy of ±1 metre. This enhances spatial awareness and precision when observing distant objects.

Additional system functions include video recording, snapshot capture, audio recording, hotspot and hot track support, reticle display, standby mode for power management, recoil-activated recording, and five configurable zeroing profiles.

Captured images and video are stored on the built-in 64 GB EMMC internal memory.

Power System and Connectivity

The device is powered by a replaceable rechargeable Li-ion battery, providing a minimum operating time of approximately 5.5 hours at 25 °C with IR and hotspot functions disabled. A USB-C (Type-C) power interface supports external power input at 5V / 2A, offering extended operational flexibility.

Integrated over-voltage protection safeguards the internal electronics during external power use.

Rugged Construction for Outdoor Use

Designed for harsh outdoor environments, the Cheetah C32F-R features an IP67-rated housing, offering protection against dust, heavy rain, and temporary water immersion. The device operates reliably across a wide temperature range from –30 °C to +55 °C.

Technical Specifications

Imaging Module

• Sensor Resolution: 2560 × 1440
• Frame Rate: 25 Hz
• Lens: 32 mm F1.2
• Minimum Focus Distance: 3 m
• Field of View: 9.9° × 7.5°
• Magnification: 1×

Display

• Display Type: OLED
• Display Size: 0.49″
• Resolution: 1920 × 1080
• Viewing Modes: Day, Night, Auto, Defog

Laser Rangefinder

• Laser Class: Class 1
• Wavelength: 905 nm
• Measurement Range: 10–1000 m
• Accuracy: ±1 m

System & Storage

• Video Recording Resolution: 1920 × 1440
• Internal Storage: 64 GB EMMC
• Audio Recording: Yes
• Reticle: Yes
• Hot Track: Yes
• Picture-in-Picture: Not supported

Power & Physical

• Battery Type: Rechargeable Li-ion (replaceable)
• Operating Time: ≥ 5.5 hours
• USB-C Power Input: 5V DC, 2A
• Protection Rating: IP67
• Operating Temperature: –30 °C to +55 °C
• Dimensions: 182.8 × 70 × 87.2 mm
• Weight: < 465 g (without eyepiece and battery)

The HIKMICRO Cheetah C32F-R Digital Day & Night Vision Imaging Device offers a powerful combination of high-resolution digital imaging, precise rangefinding, and rugged reliability, making it a capable solution for users who require dependable performance across a wide range of lighting and environmental conditions.
